Hydraulic hose line AA DN10 M18 0 9m 180bar

Hydraulic hose AA 10/1 M18x1.5, 1-braid (1SN), 180 Bar, L-900 mm Flexible hydraulic hoses, next to rigid seamless pipes, are used in every power hydraulics system for fluid transfer. Their great advantage is flexibility, which allows for wide installation and arrangement possibilities, even in hard-to-reach places. In the event of damage, failure or leakage, these hoses can be easily replaced with a new model according to a specific specification.

The hose made on the basis of the North-Fighter hydraulic hose meets the EN 853 1SN standards while offering an attractive price. It is an ideal solution for hydraulic systems with operating pressure not exceeding 180 Bar.

Hose specifications:

internal diameter: 10 mm, 3/8', dash: -06

outer diameter: 16.2 mm

inner layer: synthetic rubber

reinforcement: 1 steel wire braid

outer layer: synthetic rubber

working pressure: 180 Bar

burst pressure: 720 Bar

bending radius: 130 mm

temperature range: -40°C +100°C

standard: EN 853 1SN

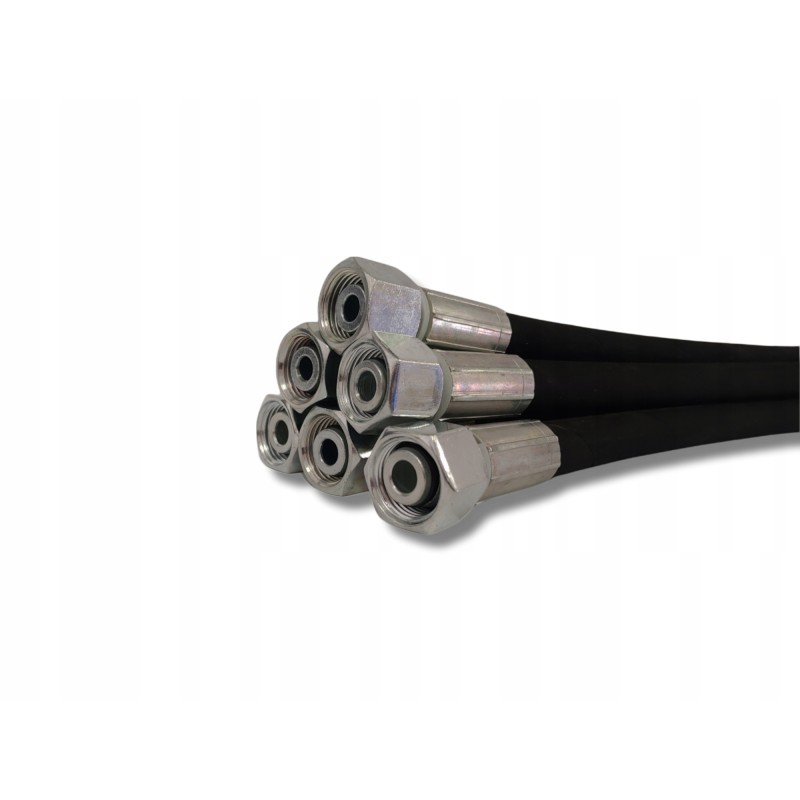

Cable crimped on both sides with DKOL straight metric terminals with internal thread M18x1.5 12L (nut).

Specification cable:

length L - 900 mm

end 1: DKOL M18x1.5 12L

end 2: DKOL M18x1.5 12L

All our hydraulic hoses are cleaned at the appropriate stage of production, so the user can be sure of receiving a product ready for installation and long-term operation! To determine the flow value of a given hose dimension, use the appropriate table (see below).

The data is selected depending on the type of pipe:

pressure (supply) line

suction or return line

To determine the size of the appropriate diameter of the hydraulic hose, it is necessary to a ruler, one end of which we apply to the flow value (left ruler), the other to the flow velocity value (right ruler), depending on the place where the cable is used.

Flow velocity lines have ranges of values that depend on individual characteristics system.

To determine the best parameters, you need to select the average value from a given range, rounding the cable dimension to the full size above the indication.

When designing and selecting cables for a given system, you also need to pay attention to:< p>

twisting angle of the terminals, this is used for the following types of cables: elbow:elbow, eyelet:eyelet, elbow-eyelet

selection of the appropriate type of terminal depending on the place and working position of the cable< p>

selecting the bending radius of the hose

avoiding twisting the hose during installation, which may cause its premature wear

proper protection of the hose against premature wear.
