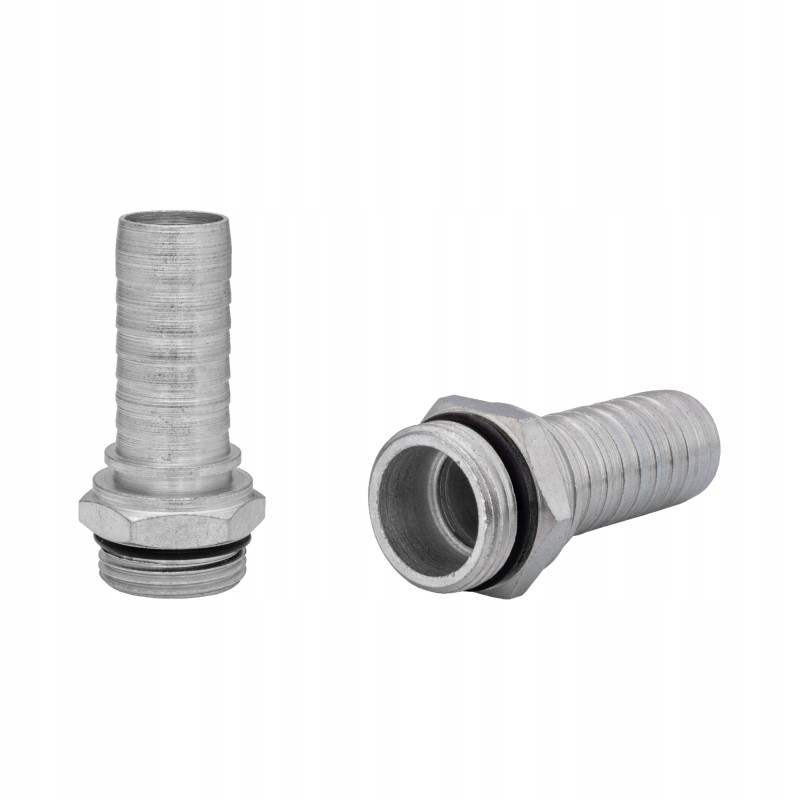

Suction connection with gasket g 1 fi 25 mm

SUCTION CONNECTION WITH SEAL G 1' -FI 25 mm Production:

Original product of the Hydrolider brand, symbol: 1.60.44.00.018

Application:

Suction connection / return, screwed directly into the pump body, manifold or tank. Designed for installation on a low-pressure suction or return line. The grooved end is pressed into the hose and secured with a clamp.

Technical data:

Thread on the side with the seal: G 1'

Outer diameter of the pipe: 25 mm (DN25)

Pipe inner diameter (through): 21 mm

Material: galvanized steel

Wrench size: 36
