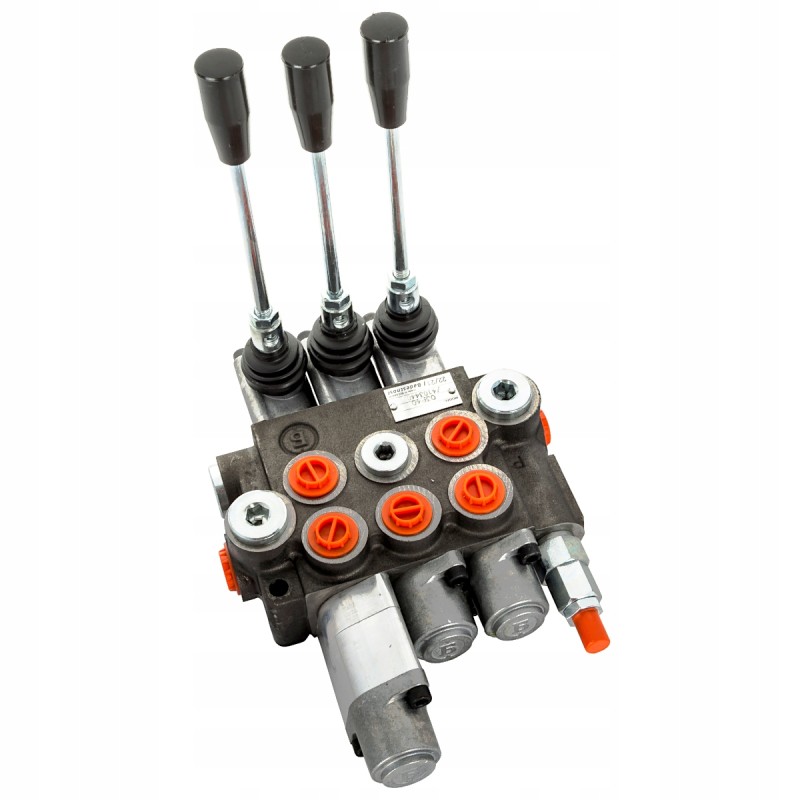

3-section distributor, 40l, with one-sided section

3-section hydraulic distributor 40L double-sided single-sided floating DJP Badestnost MIZAR number: 67479

3-section hydraulic distributor 40L 1x double-sided (D), 1x single-sided (J), 1x floating (P) ) Badestnost

It can be used in many different machines and devices that use hydraulic drives. Used, among others, for expanding or modifying hydraulic systems in Fiat, Zetor, Case, Ford tractors as well as in various agricultural machines, municipal construction machines, etc. Perfect for operating a snow plow.

Number and type of sections in order from the valve:

1st section - regular double-sided (D) - allows you to control a double-acting cylinder

2nd section - single-sided (J) - allows you to control a single-acting cylinder

3rd section - floating (P)

The undoubted advantage of the floating section is the ability to work with both double-acting cylinders (folding harrows, reversible plows, etc.) and single-acting cylinders (tipping cylinders, hydraulic lifters, etc.).

The floating section has 4 positions:

0 - distributor in neutral position,

1 - actuator advance

2 - return of the double-sided actuator

3 - lowering the single-sided actuator (in the case of a double-sided actuator - this position allows it to 'float', which is used, for example, in snow plows)

In the floating position - 3 - the section has a latch that holds the distributor lever in this position (so-called free flow)

Technical information:

Manufacturer: Badestnost

Control: lever mounted on the distributor

Operating temperature range: from - 40°C to +60°C

Maximum working pressure:

P = 250 bar

T = 50 bar

A, B = 300 bar

Oil flow: 40L/ min.

* - markings embossed on the manifold housing to identify the connections

The manifold is equipped with a non-return valve and a valve overflow, also serving as a safety valve.

Connections:

Outputs from the section (A and B) - 3/8' BSP

Power supply (P*) - 1/2' BSP

Return (T*) - 1/2' BSP

Pressure outlet (N*) -1/2' BSP

Why Badestnost?

Badestnost is a Bulgarian company operating continuously since 1902. It is one of the first representatives of the dynamically developing industry in the Black Sea country. Since 1978, it has specialized in the production of hydraulic distributors. Highly qualified staff and many years of experience guarantee high quality and reliability of products that are widely used in agriculture, where control of the flow direction of the working fluid is required. Since 2015, the company has been a member of the American National Fluid Power Association, whose goal is the constant development of fluidized bed technology by over 300 manufacturers, distributors and suppliers of hydraulic systems and components from around the world!

MIZAR number: 67479
