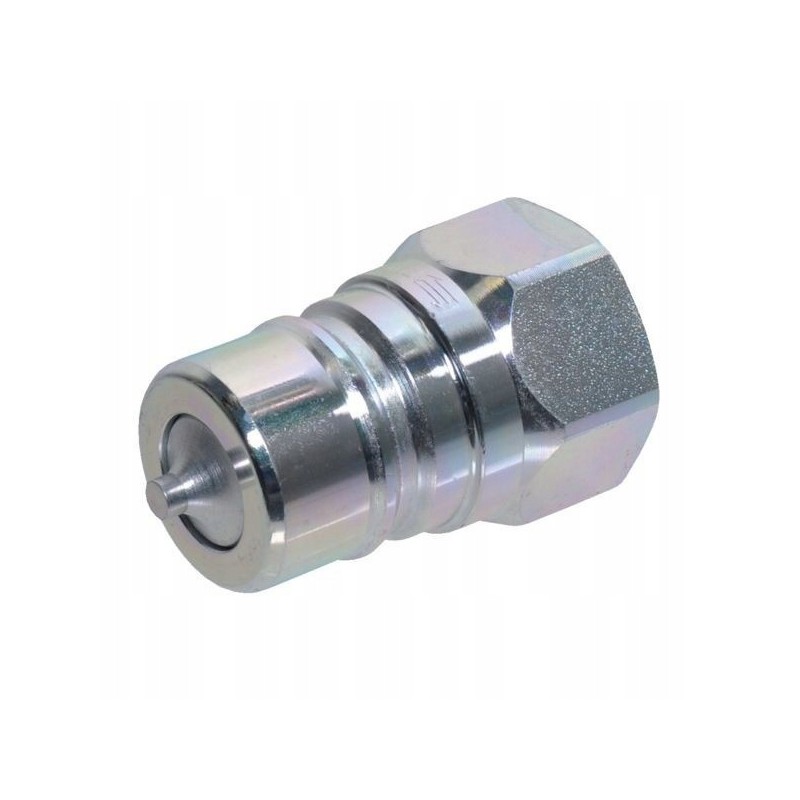

Anv34gasm hydraulic connector 3 4 bsp internal thread

Hydraulic connector 3/4 BSP thread internal INDEX: ANV34GASM

Length: 55mm

Material: Steel

Valve type: Poppet

Shape: Straight - 2 connection sides

Size: 20 mm

Outer diameter: 38 mm

ISO standard: 724-A

1179-1

Series: ANV

Connector thread diameter: 3 /4inch

Connection diameter: 29mm

Surface treatment: Chrome plated

Connector thread type: BSP

Total length: 110mm

Seal material: Nitrile rubber [NBR]

Weight: 180.5g

Working pressure: 300BAR

Connector type no. 2 - male /female: Female

Possibility of connection under pressure: No

Max operating temperature: 125°C

Min operating temperature: -25°C

Quick connector lock type: Balls around the circumference

Connection method: Sleeve displacement

Disconnection method: Sleeve displacement

Type connector no. 2: Thread

Thread diameter of connector no. 2: 3/4 inch

Size (code): BG 4

Thread type of connector no. 2: BSPP

Number of turns per inch of thread of connector no. 2: 14

Flow at 2 bar pressure: 180l /min

Connector #1 Type: Quick Connect

Connector #1 Male/Female Type: Male

Connector #1 Key Size: 34mm

Connection #1 Diameter: 1.14inch
