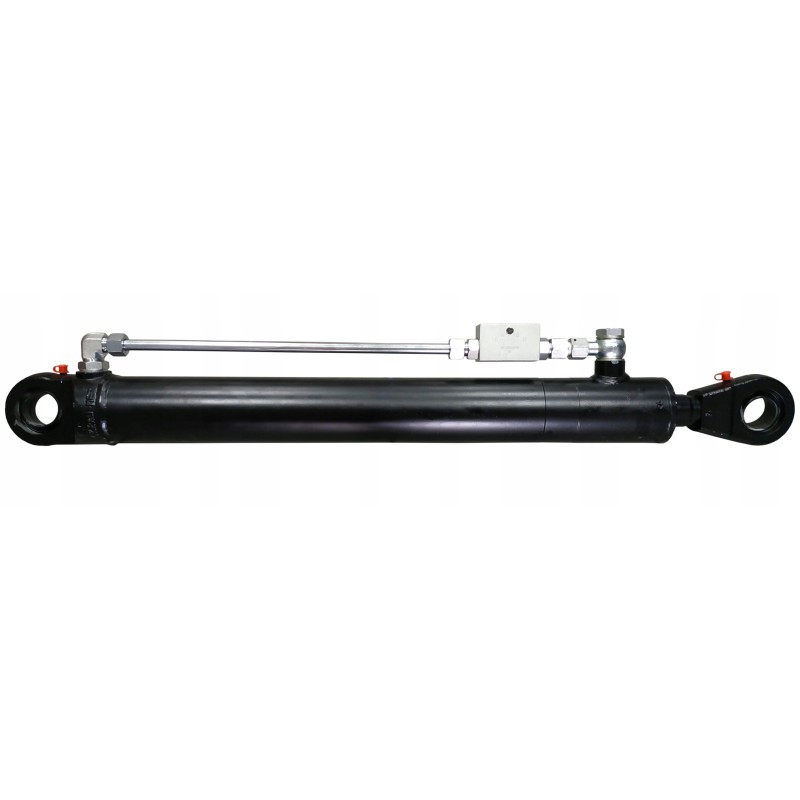

Hydraulic cylinder actuator 63x36 stroke 200 valve 3 8

Polish Hydraulic Actuator 63x36x200 with a blocking and non-return valve used to block the actuator in both directions. CODE SKRAW MET:[8247]The set includes: CJ2F cylinder 63x36x200

Connection set

12mm tube

Locking valve - return 'LOCK' VBPDE 3/8''

!!!The sets sent are prepared for self-assembly due to the risk of damage during transport by the transport company!!!Hydraulic Cylinder Polish double-acting with a stroke of 200 mm Manufacturer: Skraw-MetSKRAW-MET is a long-time leader in the production of actuators. Thanks to experience, he uses only reinforced seals of Polish origin, which ensures the highest quality on the market and reliability for years!

In our other auctions you will find reinforced seals as a repair kit for this actuator.

_____________________________________________________________________

Application in plows, Troll loader buckets, grabs, crocodiles and similar.

The hydraulic cylinder is perfect for hydraulically powered machines and devices.

Maybe be used in agriculture, horticulture, forestry and construction.

It is adapted to work in: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

Symbol: CJ2F 63x36x200 U35Technical specifications: Length of the folded cylinder 482 mm,

Piston stroke 200 mm,

Length of the unfolded cylinder 682 mm,

Outer diameter of the actuator 73 mm,

Piston rod diameter 36 mm,

Mounting on one side and the other with self-aligning bearings diameter 35mm,

Acceptable pressure 280 Bar,

Permissible ambient temperature from -40'C to +60'C

Permissible oil temperature from -15'C to +80'C

Hydraulic check valve 'ZAMEK' VBPDE 3/8'' Locking the double-acting cylinder. Made in Italy, solidly made. The valve is used in double-acting cylinders, it is used to block the cylinder in both directions.

The valve releases lock when controlling the hydraulic distributor.

The valve is used in rounds, cyclopes, forklifts, agricultural and industrial machines and other hydraulically controlled devices.

Connection: Connect V1 and V2 to the line supply (distributor) and C1 and C2 to the hydraulic cylinder.

Technical specifications: Maximum flow: 35L/min.,

Internal threads in the body: 3/8' connection port,< p>

Permissible pressure: max. pressure. 350 Bar,

Permissible ambient temperature: -40'C to +60'C,

Permissible oil temperature: -15'C to +80'C,

Oil type: mineral oil-based hydraulic oil,

Material: galvanized steel.

!!!The sets sent are prepared for self-assembly due to the risk of damage during transport by the company transport!!!
