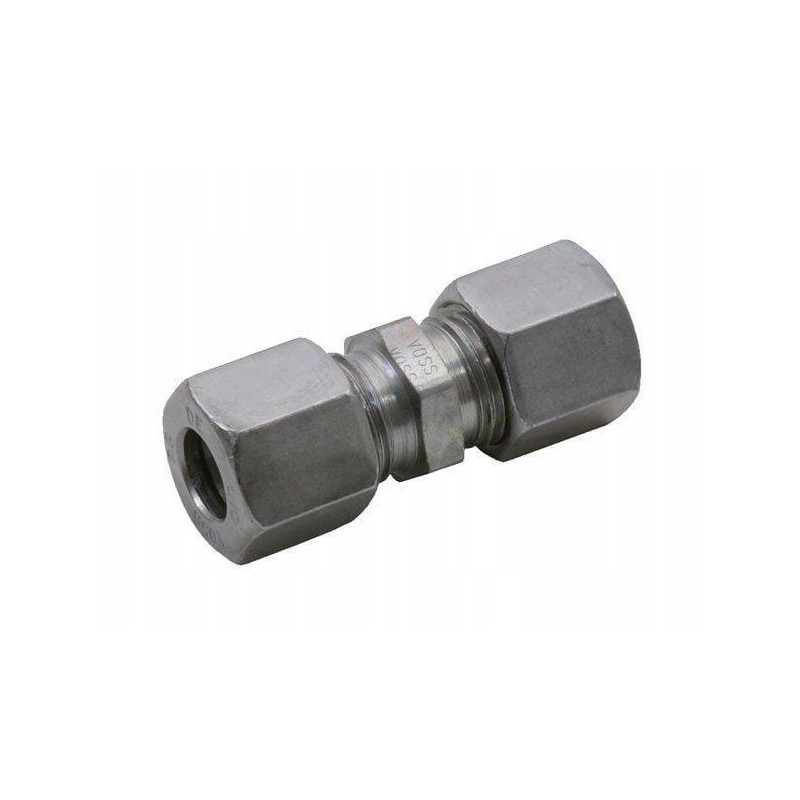

Straight threaded connector 18 l gv18l voss

Straight threaded connector 18 L Parameters

Part number: GV18L

Unit: piece

Manufacturer: Voss

Shape: Straight - 2 sides connection

Connector type: Cutting ring

Connector type - male/female: Male

Connection diameter: 18 mm

Connector thread diameter: M26

Thread pitch Connector No. 1: 1.5 mm

Connector Thread Type: Metric

Wrench Size for Connector [S1]: 27 mm

Connector Type No. 2: Cutting Ring

Connector No. 2 Type - Male/Female: Male

Connector No. 2 Diameter: 18 mm

Connector No. 2 Thread Diameter: M26

Connector No. 2 Thread Pitch: 1.5 mm

Connector No. 2 Thread Type: Metric

Wrench Size for Connector No. 2 [S2]: 32 mm

Distance Between Connectors [L1]: 16 mm

Pipe diameter: 18 mm

Total length [L]: 48 mm

Cone angle: 24

Max. working pressure: 400 BAR

Series: L

Specifications

- Cutting ring 2S

Application

- Hydraulic hose

- Hydraulic lines

Properties

- Optimum connection to the cutting ring and perfect operation - High corrosion resistance DIN standard

- 2353

- 2401

Surface treatment

- Zinc

- Nickel plated
