4-SECTION HYDRAULIC DISTRIBUTOR P40L/min INCLUDED WITH A SET OF QUICK CONNECTORS FOR EURO SOCKETSProduction:

Original product of the Badestnost brand, manufacturer's symbol: 1.10.00.044

Application:

It has a wide range of used in hydraulic systems in construction, agriculture and industry.

The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, tourers, cyclopes, HDS loaders, construction machines, loaders, excavators, sweepers , industrial machines and other hydraulically controlled devices.

Technical data:

Recommended oil flow in the system: 0 - 40 l/min. Example control: four double-acting cylinders.

Possibility of serial connection to an existing system (pressure sleeve required).

Control:

All three-position levers (1 - 0 - 2), on a spring, i.e. they return to the vertical on their own:

Neutral position 0 (lever set vertically), the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (lever set in a forward diagonal position), the actuator piston rod extends.

Working position 2 (lever set obliquely to the rear), the actuator piston rod retracts.

On the right side, a hydraulic diagram of the offered distributor:

Additional information:< p>

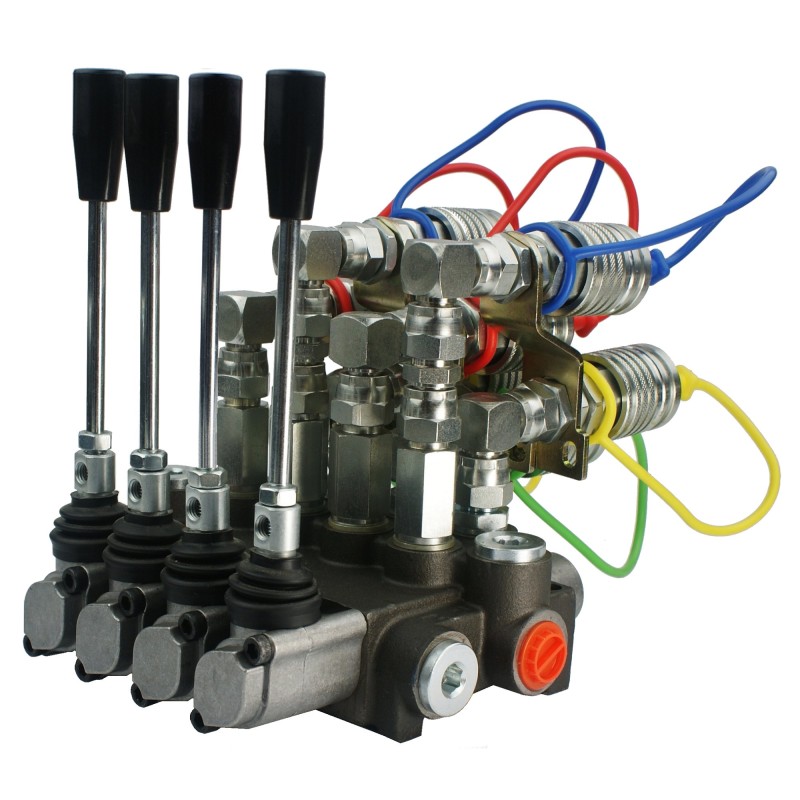

The set is sent as in the photo, assembled and ready to connect plugs and cables. Possibility of modifying the set at the customer's request. All euro sockets are connected with each other with an innovative solution. A special bracket connects two sockets on the section, creating a uniform, compact structure. This ensures no oil leaks and protects against possible damage to the threads or the distributor body when fastening and unfastening the quick connectors.

Connection:

Power supply from the pump (P1, P2): internal thread BSP 1/ 2''

Return to tank (T1, T2): BSP internal thread 1/2''

Sections (A1, A2, A3, A4, B1, B2, B3, B4): quick connectors, EURO ISO type sockets

Series connection (N): BSP 1/2' internal thread

Pressure range:

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on the sections: 300Bar

The opening pressure of the overflow valve increases proportionally with the increase in flow:

180 bar at 10 l/min

190 bar at 20 l/min

200 bar at 30 l/min

210 bar at 40 l/ min

Sets for precise pressure measurement can be found in the Manometers - measuring sets section

It is recommended to check and set the appropriate pressure before starting.

Possibility of self-adjustment, full turn change by 30Bar.

Oil types recommended by AGRICOLA:

Thinner high-quality oil: LOTOS AGROL BOXOL 26

Thicker high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46

Recommended oil temperature range:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C
