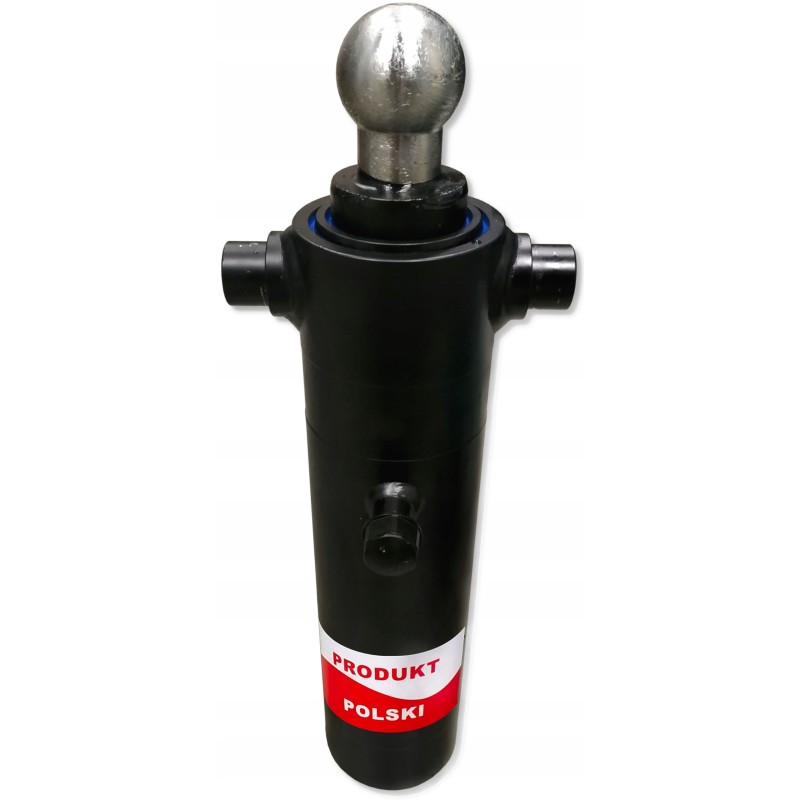

Hydraulic Cylinder Polish CYLINDER TRAILER PISTON D-35SKRAW-MET CODE: [2623]Manufacturer: Skraw-MetSymbol: ST-2.520-00 D-35SKRAW-MET is a long-time leader in the production of actuators. Thanks to experience, he uses only reinforced seals of Polish origin, which ensures the highest quality on the market and reliability for years!

In our other auctions you will find reinforced seals as a repair kit for this actuator.

___________________________

Single-acting hydraulic cylinder. The hydraulic cylinder is perfect for hydraulically powered machines and devices.

The main application of this cylinder is the D-35 trailer, where two such cylinders enable tipping on side.

It is also used for renovation and production of trailers with similar characteristics (e.g. D-47).

It can be used in agriculture, horticulture, forestry and construction.

A word about telescopesTelescopic cylinders consist of several successively extending segments - chrome-plated cylindrical sleeves. This allows for a large actuator extension compared to its total length when folded.

Telescopes are single-acting actuators. The extension begins by supplying hydraulic oil under pressure. The return of the actuator is caused by the action of the distributor, which releases pressure from the system - the fall occurs by gravity, most often under the influence of the weight of the load box.

To prevent damage to the sleeve protection caused by excessive pressure in the maximum extension of the actuator, a protection device (rope, hydraulic or electric shut-off valve).

A well-selected actuator located in the center of the body ensures an angle of inclination of the load box between 40 and 45 degrees.

Depending on the type of goods transported, this angle can be choose yourself - the table below may be helpful:

TELESCOPIC ACTUATOR SELECTION TABLE (TABLE OF TRAVEL REQUIRED TO TILT THE TRAILER TO THE DESIRED ANGLE)

DP - distance between the cylinder mounting and the trailer hinges in [mm] (DP = 1/2 S)

a° - trailer body inclination angle

C - actuator stroke in mm

S = DP*2

___

T - Push force

BAR - Pressure

Technical specifications: Number of stages: two

Length of the cylinder folded 437 mm,

Piston stroke 520 mm,

Total length of the cylinder after unfolding 957 mm,

Diameter of the first piston rod 60 mm,

Diameter of the second piston rod 75 mm,

Outer diameter of the cylinder 95 mm,

Hydraulic connection M22*1.5

Max. speed. piston rod: 0.5 m/s

Starting pressure: 0.5 MPa

Maximum working pressure: 160bar

Oil requirement: 2L

Permissible ambient temperature from -40℃ to +60℃

Permissible oil temperature from -15℃ to +80℃

Gland type: threaded screwed into the pipe

Piston rod: chrome-plated

Fluid type: mineral oil-based hydraulic oil
