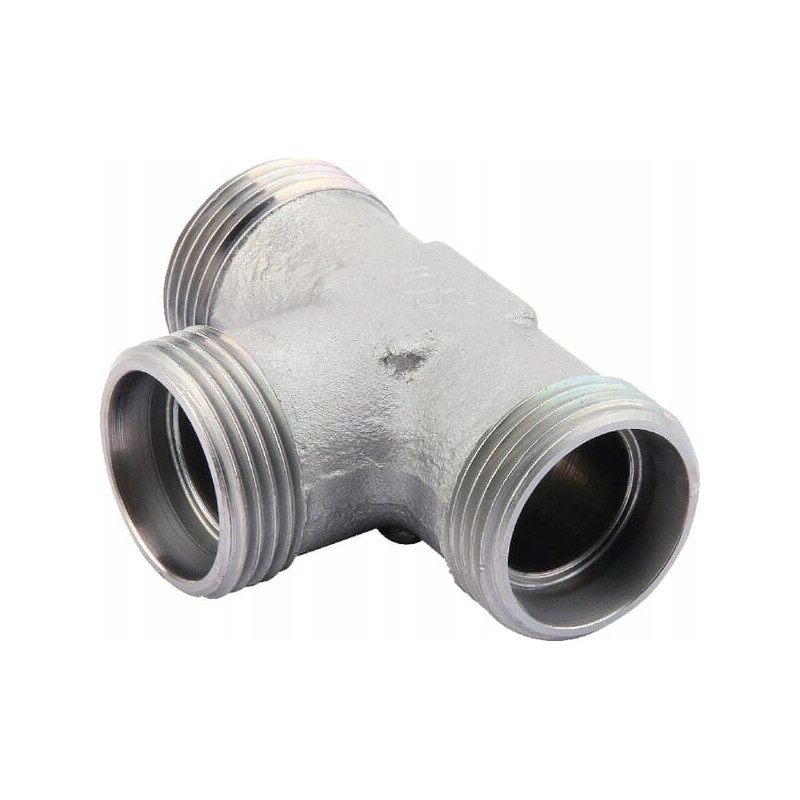

Tee connector m22x1 5 15l ts15l voss

Tee connector M22x1.5 15L Parameters

Part number: TS15L

Unit: piece

Manufacturer: Voss

EAN: 8716106786435

Properties: - High corrosion resistance

Shape: Tee (T) - 3 connections

Connector type: Thread

Connector type - male/female: Male

Diameter connection: 15 mm

Connector thread diameter: M22

Connector no. 1 thread pitch: 1.5 mm

Connector thread type: Metric

Connector wrench size: 27 mm

Connector type no. 2: Thread

Connector type no. 2 - male/ Female: Male

Connector No. 2 Diameter: 15 mm

Connector No. 2 Length: 21 mm

Connector No. 2 Thread Diameter: M22

Connector No. 2 Thread Pitch: 1.5 mm

Connector No. 2 Thread Type: Metric

Wrench Size for Connector No. 2: 27 mm

Connector No. 3 Type: Thread

Connector No. 3 Type - Male/Female: Male

Connection No. 3 Diameter: 15 mm

Connector No. 3 Thread Diameter: M22

Connector No. 3 Thread Pitch: 1.5 mm

Thread type of connector no. 3: Metric

Pipe diameter: 15 mm

Internal diameter: 12 mm

Total length: 56 mm

Body height: 19 mm

Max. working pressure: 400 BAR

Series: L

Specifications

- For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version Dimension from the axis of the joint to the end of the next joint - 21 mm

- 28 mm

DIN standard

- 2353

- 2401

Surface treatment

- Zinc

- Nickel plated
