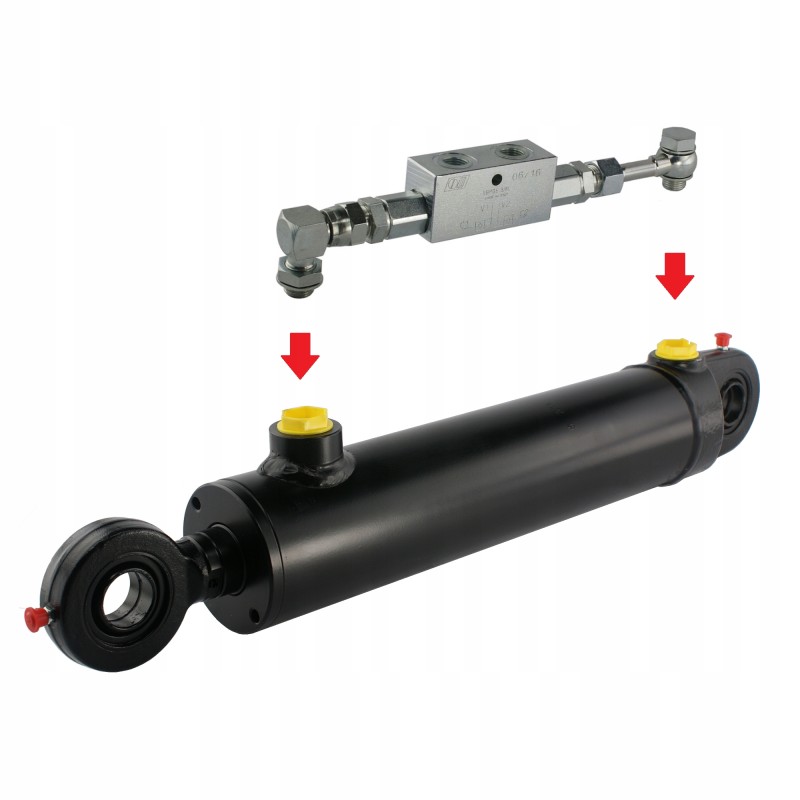

Hydraulic actuator 63 32 200 l 450 hydrolider lock

DOUBLE-ACTING HYDRAULIC CYLINDER COMPLETE WITH SAFETY VALVE 'LOCK'Production:

Original product of the Hydrolider brand, manufacturer's symbol: 1.33.10.205, CJ2F 63/32/200 U25

Application of the actuator:< p>

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The actuator is adapted to various types of agricultural machines such as: bale grabs, crocodiles, axles , as well as snow plows, sprayers, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

Application of the safety valve:

The safety valve (lock) is used to block the movement of the actuator in both directions. It ensures stabilization of the position of the piston rod when we do not control the actuator, and at the same time large forces act on it. The valve lock stops working automatically when we start controlling the hydraulic distributor and release the pressure towards the actuator.

DEAR CUSTOMER, READ THIS BEFORE YOU CHOOSE AN ACTUATOR SUPPLIER: What you see in the photo are only the metal elements that make up the actuator actuator. In fact, the actuator is only worth as much as the internal seals used in its construction. We ensure that all our actuators have reinforced seals that are not manufactured in China or other Far Eastern countries. If you care about quality and durability, choose Hydrolider actuators, which are the only ones that guarantee reliability for years.

General information about the actuator:

Head mounting on the pipe side: welded

Mounting the head from the rod side: screwed on

Gland type (closing cap): threaded, screwed into the pipe

Rod type (piston rod): chrome-plated, weldable

Dimensions of the actuator:

Outer diameter of the piston (pipe): 75mm

Inner diameter of the piston (pipe): 63mm

Piston rod (rod) diameter: 32mm

Diameter of holes for pins: 25mm

Stroke (working movement) of the piston rod: 200mm

Length in the rest state measured in the axes of holes: 450mm

Internal threads for connections: M22x1.5

Actuator operating parameters:

Maximum allowable operating pressure: 250 bar

Permissible ambient temperature: -40ºC to + 60ºC

Permissible oil temperature: -15ºC to +80ºC

Liquid type: mineral oil-based hydraulic oil

Table showing the change in the pushing force of the offered actuator depending on the changes in oil pressure in the hydraulic system (photo):

Important!!! Agricola sets have been designed in such a way that they can be easily assembled by yourself. Due to the safety of the goods during transport and the restrictions resulting from the regulations of courier companies, the set is sent untwisted. The set includes

precise, pictorial assembly instructions along with a list of individual elements included in it.
