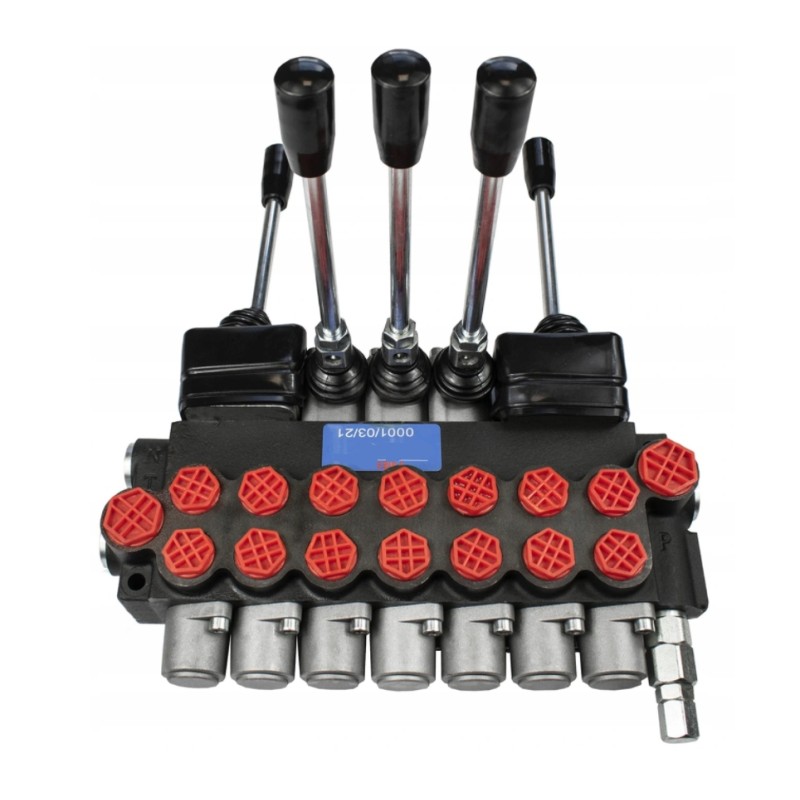

7-section divider for forestry machines

DISTRIBUTOR 7 SECTIONS, CONTROL USING LEVER AND JOYSTICKS, FLOW 40 L/MIN. Maximum pressure: 250 bar

Maximum flow: 40 l/min

Section spacing: 35 mm

Threads on the section: 3/8'

Supply and return: 1/2'

Solid and compact construction

Easy installation

The design allows for series connection with another manifold using a pressure screw

Possibility of independent adjustment of the position of the lever in relation to the manifold

Equipped with a safety valve

Levers they have three positions on a spring, i.e. they automatically return to the neutral position immediately after removing your hand from them:- Position 0 neutral - the oil is directed back to the tank [position as in the photo on the left].

- Working position 1 (up) - oil flow - [in the case of, e.g., an actuator, the piston rod extends].

- Working position 2 (down) - oil flow - [in the case of, e.g., an actuator, the piston rod retracts ]

Connection:

The distributor's connection diagram is included in the package with the purchase.

Power supply from the pump (P1, P2): BSP 1/2' internal thread '

Return to the tank (T1, T2): internal thread BSP 1/2''

Outlet to sections (A1, A2, B1, B2): internal thread BSP 3/ 8''

Series connection (N): BSP 1/2' internal thread

Safety valve: set to 170 bar
