Pf10645 tip dn10 3 8 bsp 45

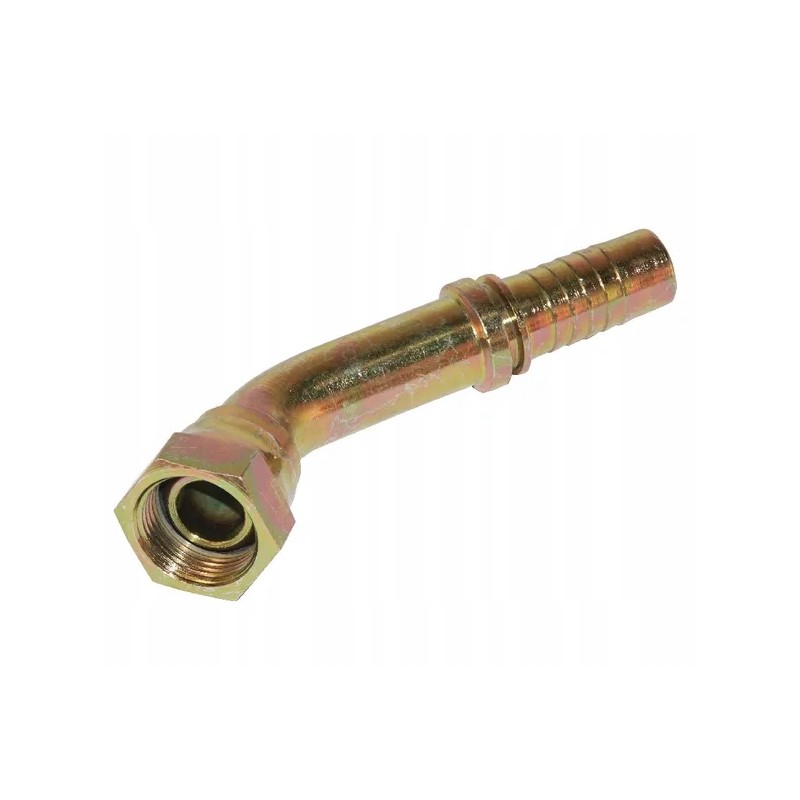

PF10645 Fitting DN10-3/8 BSP-45° Product Details

O-Ring

Includes

Fittings

Sealing Ring o-ring

Cone angle

60 °

Shape

Elbow - 2 sides of the connection

Connector type no. 1

Conical

Connector type no. 1 - male/female

Female

Connector type no. 1 - code

DKOR

Length of connector no. 1

50 mm

Connector thread diameter

3/8 inch

Connector Thread Type

BSP

Wrench Size for Connector No. 1

22.0 mm

Connector No. 2 Type

Hose connector

Connector type no. 2 - male/female

Male

Connection no. 2 diameter

3/8 inch

Diameter of joint no. 2

10 mm

Length of joint no. 2

20.5 mm

ISO standard

228

Angle

45 °

Material

Steel

Surface treatment

Galvanized

White passivated

OE reference number

H1220843-060600

Connection

xx

Type

DKOR
