Hydraulic hose line aa dn10 m18 d 2000 330bar

Hydraulic hose AA 10/2 M18x1.5, 2-braided (2SN), 330 Bar, L-2000 mm Flexible hydraulic hoses, next to rigid seamless pipes, are used in every power hydraulics system for fluid transfer. Their great advantage is flexibility, which allows for wide installation and arrangement possibilities, even in hard-to-reach places. In the event of damage, failure or leakage, these hoses can be easily replaced with a new model according to a specific specification.

The hose is made on the basis of the North-Fighter hydraulic hose and meets the EN 853 2SN standards while offering an attractive price. It is an ideal solution for hydraulic systems with an operating pressure not exceeding 330 Bar.

Hose specifications:

internal diameter: 10 mm, 3/8', dash: -06

external diameter: 18 mm

internal layer: synthetic rubber

reinforcement : 2 steel wire braids

outer layer: synthetic rubber

working pressure: 330 Bar

bursting pressure: 1320 Bar

bending radius: 130 mm

temperature range: -40°C +100°C

standard: EN 853 2SN

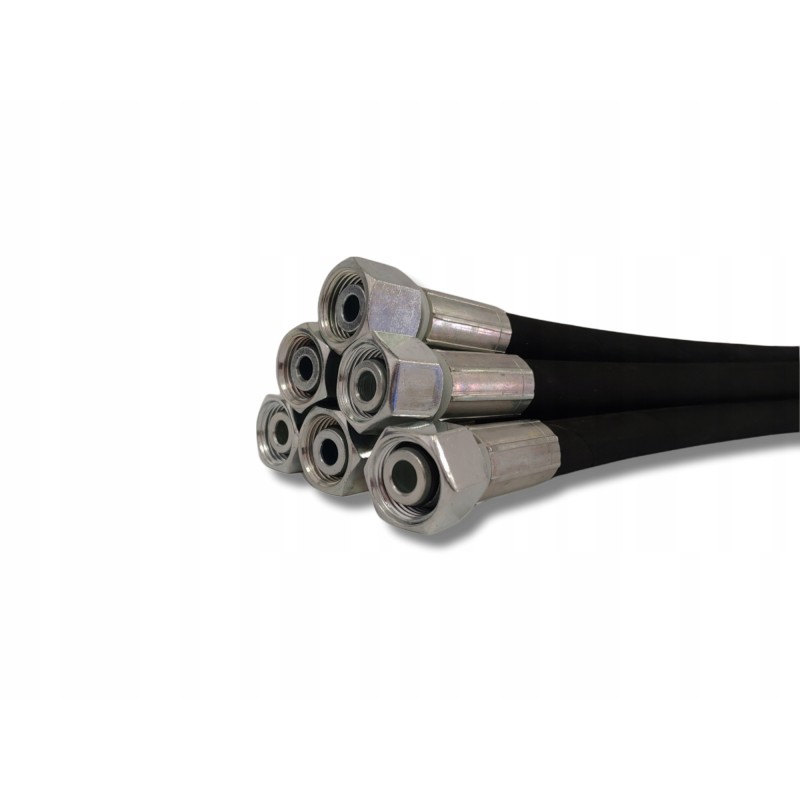

Cable on both sides with DKOL straight metric tips with internal thread M18x1.5 12L (nut).

Cable specifications:

length L - 2000 mm

end 1: DKOL M18x1.5 12L

end 2: DKOL M18x1.5 12L

On other auctions available cable lengths: 300, 400, 500, 600, 700, 750, 800, 900, 1000, 1100, 1200, 1250, 1450, 1500, 2000, 2500, 3000, 3500, 4000, 4500, 500 0, 6000, 7000 , 8000, 9000 and 10000 mm.

We are able to produce a hose in any required size!

All our hydraulic hoses are cleaned at the appropriate stage of production, so the user can be sure of receiving a product ready for installation and the certainty of long operation! To be able to determine the value flow of a given hose dimension, you must use the appropriate table (see opposite).

Data are selected depending on the type of pipe:

pressure (supply) line

suction or return line

To determine the size of the appropriate diameter of the hydraulic hose, a ruler is necessary, one end of which we apply it to the flow value (left line), the second one to the flow velocity value (right line) depending on the place of use of the pipe.

Flow velocity lines have ranges of values that depend on the individual characteristics of the system.

To determine the best parameters, an average value must be selected from a given range, rounding the cable dimension to the full size above the indication.

When designing and selecting cables for a given system, you also need to pay attention to:

the twist angle of the ends, this is used in the case of the following types of cables: elbow: elbow, eyelet: eyelet, elbow- eyelet

selecting the appropriate type of nozzle depending on the location and working position of the hose

selecting the bending radius of the hose

avoiding twisting the hose during installation, which may cause its premature wear

appropriate protection of the hose against premature wear.

We offer many varieties of fittings and hydraulic hoses. If you have not found the solution you are interested in or are looking for a tailor-made product, you will find it here!
