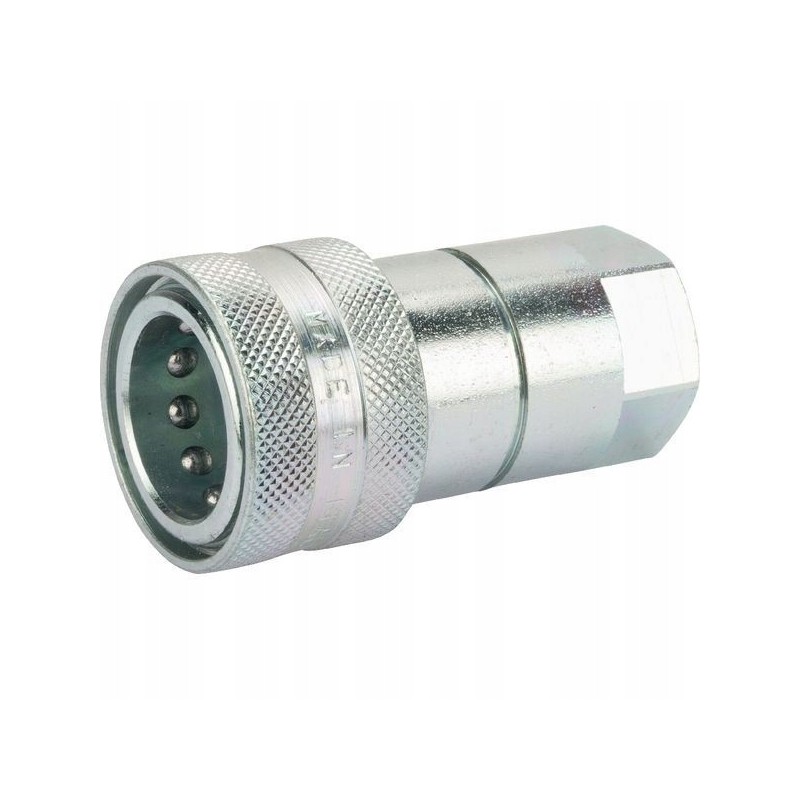

Nv38gasf quick connector 3 8 bsp ig

3/8 BSP IG quick connector INDEX: NV38GASF

Material: Steel

Specifications: - Easy connection thanks to light springs in the connector sleeve

Benefits: - Easy to operate

Features: - Axial rearward actuation of the locking sleeve (single-acting) - Induction hardening in areas subject to rapid wear - No break-off function - Large number of locking balls

Valve type: Mushroom head

Shape: Straight - 2 sides of connection

Application: - Universal use - Agricultural machinery - Municipal technology - Viticulture - Mineral oil-based fluids

Size: 10mm

Outside diameter: 33mm

ISO standard: 7241-A

Series: NV

Connector thread diameter: 3/8 inch

Connection diameter: 33 mm

Surface treatment: White passivated

Connector thread type: BSP

Total length: 78 mm

Seal material: Nitrile rubber [NBR]

Teflon ( PTFE)

Weight: 186.4 g

Working pressure: 300 BAR

Connector type no. 2 - male/female: Female

Possibility of connecting under pressure: No

Working temperature max: 125°C

Working temperature min: -25 ° C

Type quick connector locks: Balls around the circumference

Connection method: Sleeve offset

Disconnection method: Sleeve offset

Connector type no. 2: Thread

Connection thread diameter no. 2: 3/8 inch

Connection thread type no. 2: BSP

Number of turns per inch of connector thread No. 2: 19

Flow at 2 bar: 50 l/min

Connector type No. 1: Quick connector

Connector type No. 1 - male/female: Female

Connector no. 1 wrench size: 24 mm
