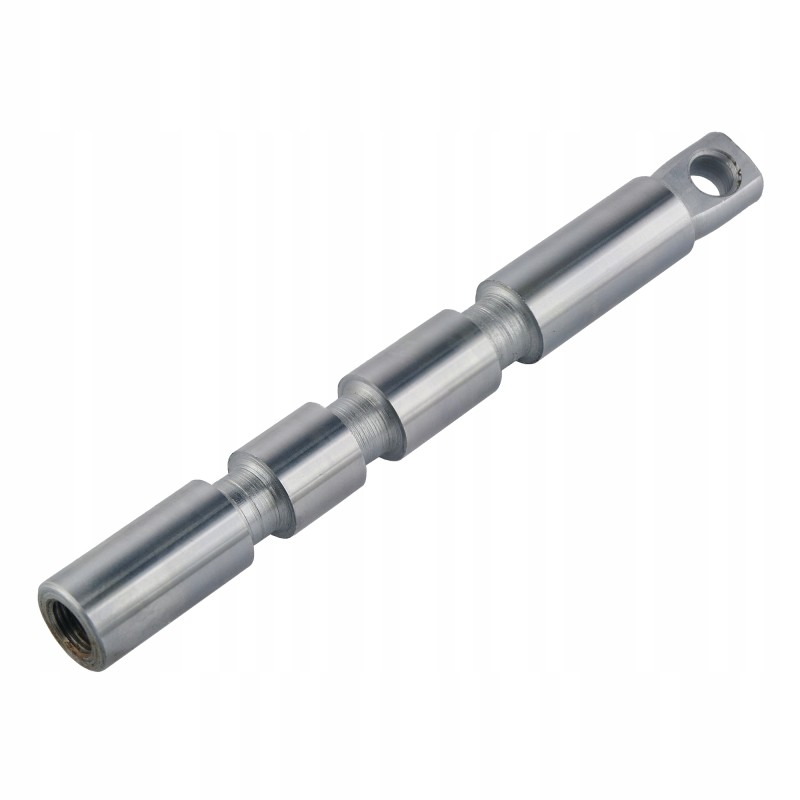

Distributor slider p40 type a badestnost

SLIDE OF NORMAL SECTION A1 OF BADESTNOST P40 HYDRAULIC DISTRIBUTOR Production:

Original product of the Badestnost brand, symbol: 1.10.70.250

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Various foreign bodies, filings, pieces cables and others may permanently damage the spool in the distributor, a symptom of which may be the distributor lever sticking or pressure not being maintained in a given section. The slider may prove to be an ideal repair kit for a single section.

Used in the A1 type section (Badestnost marking), the slider allows you to control a single-sided and double-sided cylinder.

Technical data:

Slider mounted inside the cast iron distributor body. To install the slider, you first need to unscrew the front and rear caps from a given section. Remove the old slider and reinstall the spring set.

Material: steel

Hydraulic diagram of the A1 Badestnost slider:

Recommended for installation in Badestnost P40 manifolds with a flow of 40L/min:
