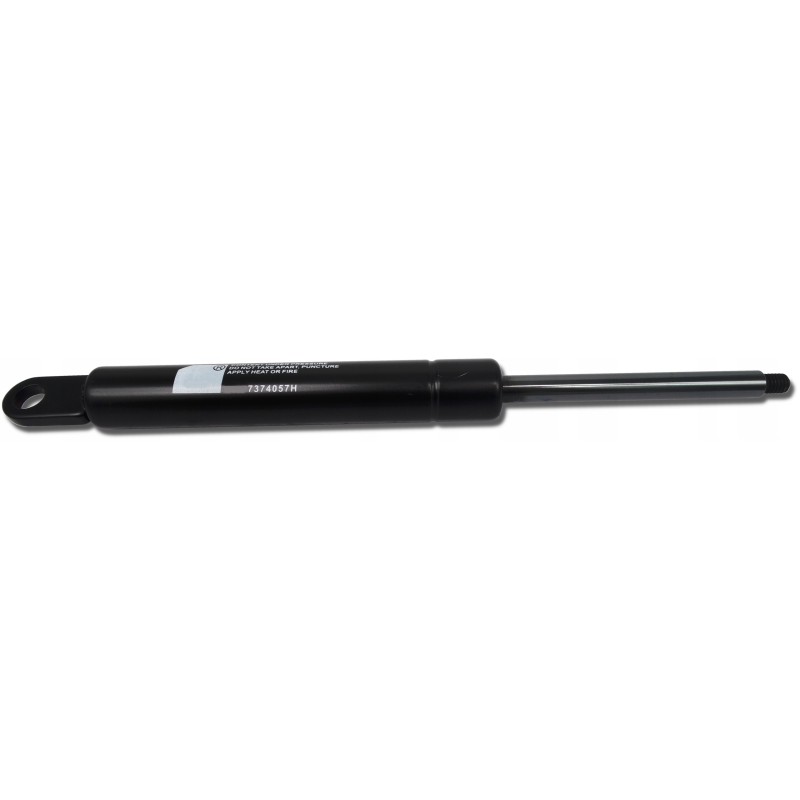

Gas actuator 210mm 180n roof cover ursus mf

Roof cover gas actuator in Ursus MF-4 tractors SKRAW-MET CODE: [3184]_____________________________________________________________________

Used in agriculture and specialized equipment, this model is compatible with URSUS tractors in models:

4512, 4514, 5314, 5714.

Gas actuators are adapted depending on the model, to work in: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

Application: MF-4 roof covers.

Technical specifications: Length cylinder folded: 135mm

Length of cylinder extended: 210 mm

Cylinder stroke: 75 mm

Piston diameter: 8 mm

Cylinder diameter: 18 mm

Bore diameter: 8 mm

Temperature range: -20°C to +70°C

Dimensions (including folded or unfolded actuator) are measured from the center to the center of the hole or mounting thread.

Advantages of gas actuators: No power source required.

Transfer of high force with relatively small dimensions.

Long service life and guarantee of failure-free operation of the actuator.

Very easy and quick installation .

Wide use and versatility, from agricultural machinery to furniture.

Adjusted to work at various temperatures.

Telescopes are designed individually for each model. The whole thing is mounted to the factory technological holes of the vehicle, without the need for drilling or other processing.
