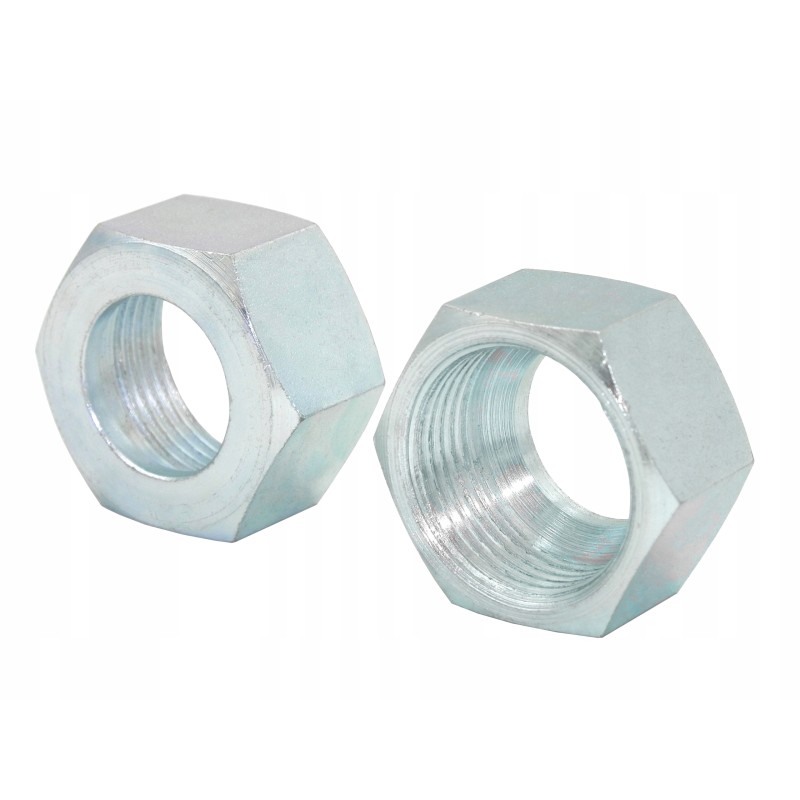

TEKALAN CLAMP NUT M18x1.5 10S FOR HYDRAULIC TUBE Application:
It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.
TEKALAN type clamping nut mounted on hydraulic pipe. Metal pipes are a solid carrier of the oil flow in the hydraulic system. Compared to hydraulic hoses, tubes are characterized by longer service life, resistance to weather conditions and resistance to very high pressures.
TEKALAN nuts are necessary to install metal tubes in the hydraulic system. For proper installation of the hydraulic pipe, in addition to the nut, you need a Tekalan ring, which we offer at other auctions.
The TEKALAN system does not require additional sealing work during installation, e.g. welding. Sealing occurs automatically, the ring seals the connection when tightening the nut.
Technical data:
Thread: metric 18x1.5 10S - heavy standard
Maximum pressure: 240 bar
Material: steel
Our offer includes most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
