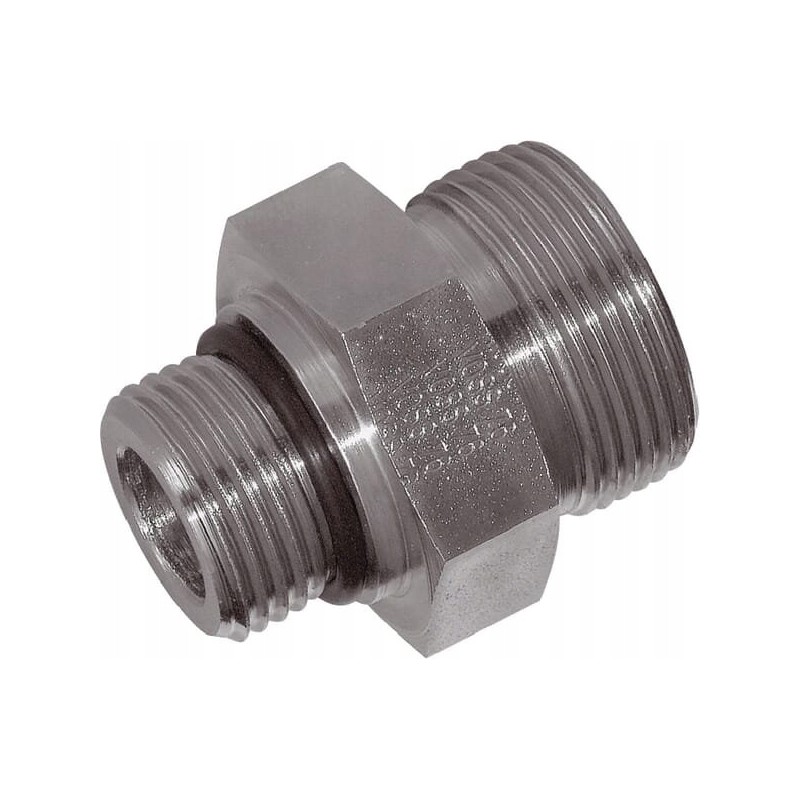

Straight connection m16x1 5 10l 3 4 unf

Straight connection M16x1.5 10L 3/4 UNF Parameters

Part number: GES10L34UNF

Unit: Piece

Manufacturer: Voss

Shape: Straight - 2 sides connector

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connection diameter: 10 mm

Connector thread diameter: 3/4 inch

Connector No. 1 Thread Diameter: M16

Connector No. 1 Thread Length: 11 mm

Connector No. 1 Thread Pitch: 1.50 mm

Connector Thread Type: UNF

Connector No. 1 Wrench Size: 23 mm

Connector No. 1 Wrench Size : 24.0 mm

Connector No. 2 Type: Sealing Ring

Connector No. 2 Type - Male/Female: Male

Connector No. 2 Thread Diameter: 3/4 inch

Threads per Inch for Connector No. 2 Thread: 16

Connector No. 2 Thread Type : UNF

Wrench size for connector no. 2: 19.0 mm

Pipe diameter: 10 mm

SAE standard: 514

Internal diameter: 8 mm

Length: 31 mm

Max. working pressure: 400 BAR

Seal material: Nitrile rubber [ NBR]

Series: L

Max tightening torque: 55 N m

Advantages

- Limited risk of leakage Product details

- For direct connection to a metric hose nut or pre-assembled connector - Highly resistant to corrosion - Hydraulic Hoses

- Hydraulic pipes - Available with Viton seal on request Benefits

- Low risk of leakage Dimension from the axis of the joint to the end of the next joint 28mm

Dimension from the axis of joint no. 2 to the end of the next joint 13mm

DIN standard

- 2353

- 3852

- 2401

Surface treatment

- Zinc

- Nickel plated
