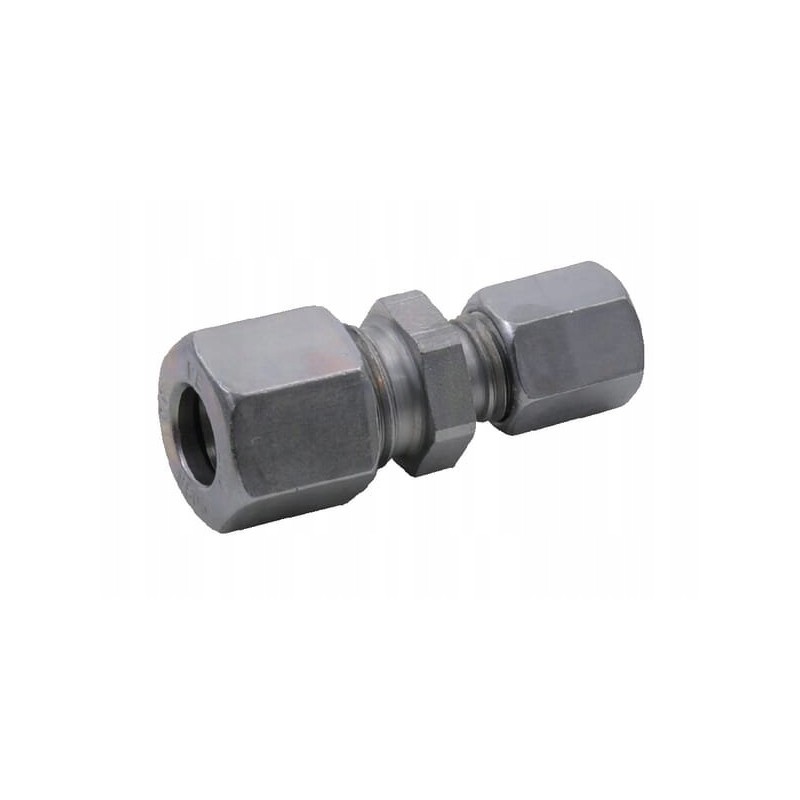

Straight threaded connector m18x1 5 12l m14x1 5 8l g

Straight threaded connector M18x1.5 12L - M14x1.5 8L Parameters

Part number: GV128L

Unit: piece

Manufacturer: Voss

Shape: Straight - 2 sides of connection

Connector type: Cutting ring

Connector type - male/female: Male

Connection diameter: 12 mm

Connector thread diameter: M18

Connector no. 1 thread pitch: 1.5 mm

Connector no. 2 type: Cutting ring

Connector type no. 2 - male/female: Male

Connection No. 2 diameter: 8 mm

Connector No. 2 thread diameter: M14

Connector No. 2 thread pitch: 1, 5 mm

Thread type of connector no. 2: Metric

Max working pressure: 400 BAR

L1: 13 mm

pipe Ø D1 (mm): 12 mm

pipe Ø D2 (mm): 8 mm

Total length: 425 mm

Pressure: PN (nominal pressure) and Temperature acc. to DIN 2401. BAR

Series: L

Total length [L]: 42.5 mm

Wrench width, third [S3]: 17 mm< p>

Wrench opening: 19 mm

Wrench opening, other end: 22 mm

Specifications

- 2S cutting ring

Application

- Hydraulic hoses

- Hydraulic lines

Features

- Optimal connection with the cutting ring and perfect function

- High corrosion resistance

Technical information

- Stainless steel version available on request
