Multiplier 1 3 8 w pump 40l hydrolider

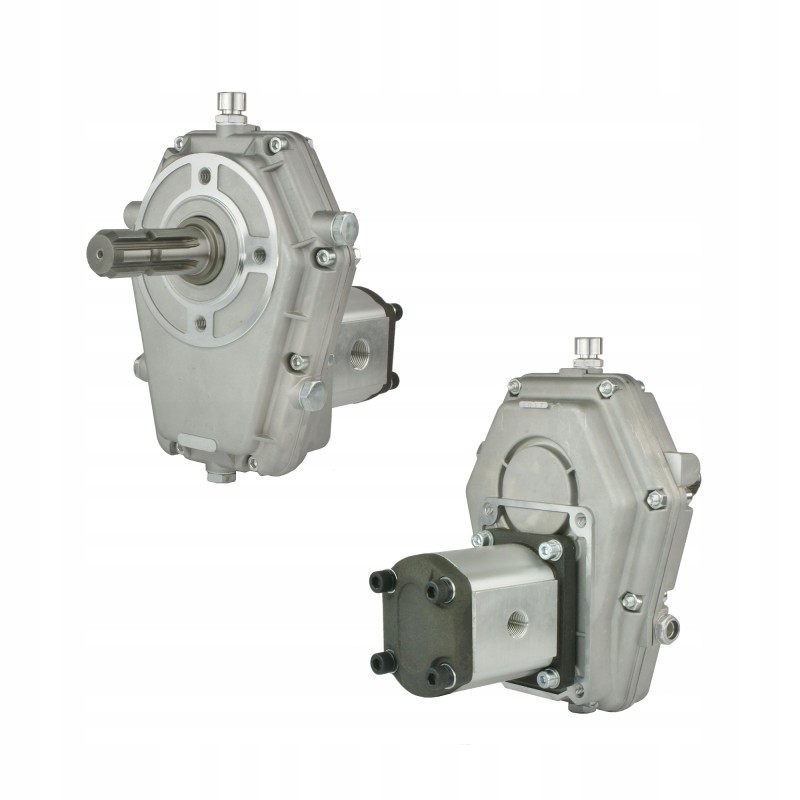

MULTIPLIER WITH HYDRAULIC PUMP Set:

Multiplier 1:3.8

Gear pump 20 cm3

Connecting clutch

Screws and connections

Production:

Original product of the Hydrolider brand, symbol: 1.45.03.040

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

A strong and efficient set, ideally suited for small and medium-sized forestry and construction machines and tractors, including C-330, C-360, C-385, ZETOR, MF and others with drive from the PTO shaft.

Used wherever the original hydraulic pump installed in the machine is not strong and efficient enough or when an additional, new hydraulic system is needed to control the newly installed equipment .

Technical data of the set:

The gearbox has a protruding PTO shaft, this solution allows the gearbox to be driven with various types of cardan shafts or PTO shafts.

This solution allows the gearbox to be mounted further from the tractor or other PTO drive source and placing it, e.g. directly on the working machine.

Efficiency of the set:

Efficiency depends on the revolutions of the PTO shaft to which the set is connected. The higher the PTO revolutions, the more efficient the pump.

Efficiency of the set in l/min relative to the PTO shaft revolutions:

220 rpm per PTO efficiency 16L/min

320 rpm on PTO capacity 24L/min

430 rpm on PTO capacity 32L/min

540 rpm on PTO capacity 40L/min

Efficiency of the set in l/min relative to engine revolutions in tractors C-330, C-360, C-385, ZETOR, MF 255 and derivatives:

800 rpm on the engine efficiency 16L/min

1200 rpm on the engine, efficiency 24L/min

1600 rpm on the engine, efficiency 32L/min

2000 rpm on the engine, efficiency 40L/min

Technical data of the gearbox:

Transmission ratio: 1:3.8 Max power: 20 kW

A typical 1.3/8' PTO shaft protrudes from the gearbox

Revolutions per PTO shaft: max 540 rpm

Has a sight glass for checking the gear oil level

Possibility of working with pumps of the second and third group

Material: body - aluminum, gears - steel

Requires filling with gear oil.

When used for the first time, to increase the durability of the gear, it is recommended to change the oil after the first 50 operating hours.

Technical data pumps:

Geometric volume: 20 cm3/rev

Rotation direction: right

Maximum rotational speed: 2500 rpm

Maximum pressure in continuous operation: up to 25 MPa

Integration:

Additional modules and accessories needed when creating new hydraulic systems on machines and tractors, available at other auctions (photo):

Important!!!

Agricola sets have been designed in such a way that they can be easily assembled on your own. Due to the safety of the goods during transport and restrictions resulting from the regulations of courier companies, the set is sent untwisted.
