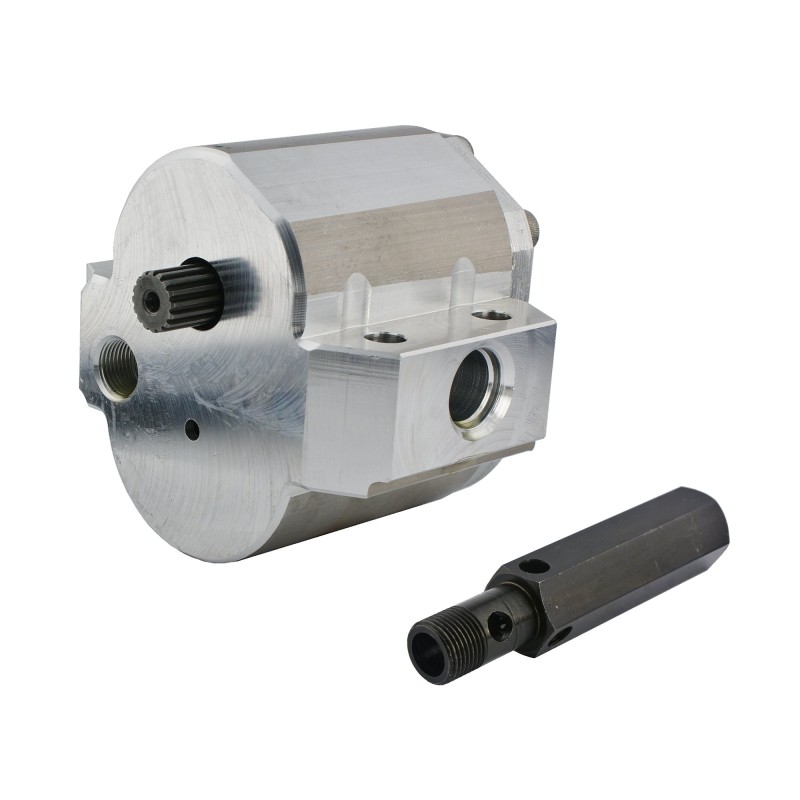

Hydraulic pump with reinforced lifting capacity c 360 valves

HYDRAULIC PUMP FOR LIFTING C-360C-360-3P INCREASED FLOW AND CAPACITY WITH A SAFETY VALVE Production:

Original product of the Hylmet Polska brand, set symbol: 1.40.15.064, pump symbol: 60/46.546.310/ w1/ al, 0046/54-631/0, 1.40.15.062, valve symbol: 60/46.446.050/al, 0046/64-601/0, 1.40.15.063

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and industry in general.

The pump is primarily intended for controlling the hydraulic system in Ursus C-360, C-360-3P, C- 4010. The pump also fits Zetor 5011 and 7011.

General information:

The pump has enhanced oil flow and can also operate at high pressure. To use the full power potential of the pump, it is required to replace the safety valve with a reinforced 17.5MPa one.

Technical data:

Capacity: 40 l/min (at 1600 rpm)

Geometric volume: 25 cm3/rev

Rotation direction: left

Rotation range: 800 - 2500 (rpm)

Internal threads : M22x1.5 Body: aluminum

Operating parameters:

Maintaining the pump operation according to nominal parameters ensures the longest service life. Operation at maximum parameters is permissible, but it shortens the pump's life.

Nominal pressure: 16 MPa

Maximum pressure: 20 MPa
