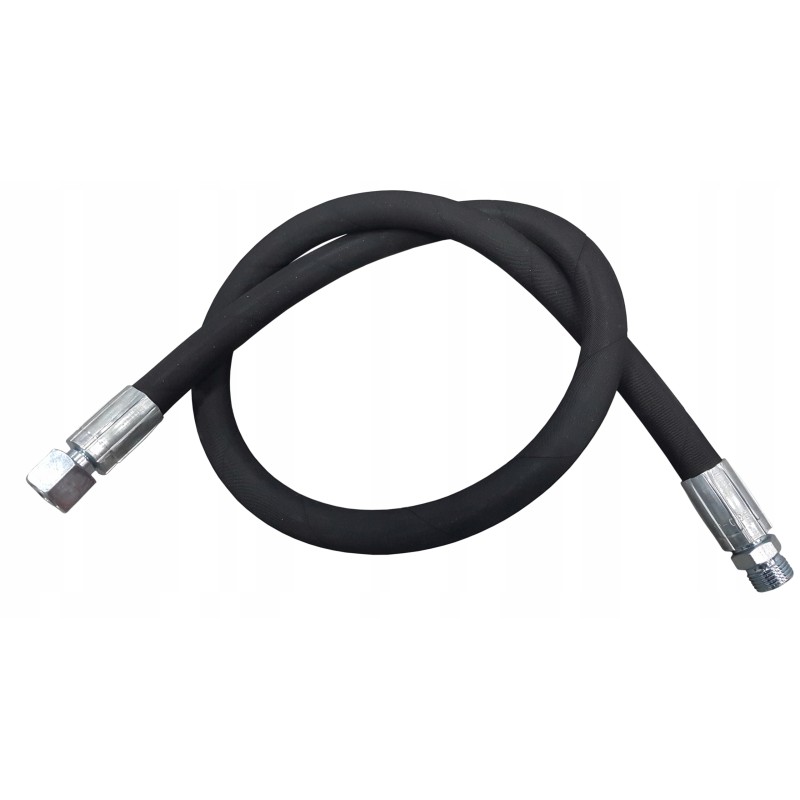

Hydraulic hose line dn8 16 16 ab3500 360bar

HYDRAULIC HOSE ZAKUTYP AB 8/2/3500/16-16[9008]

Application:

Hydraulic hoses are perfect for hydraulically powered machines and devices. They can be used in agriculture, horticulture, forestry and construction.

Pressure hydraulic lines are self-sealing after tightening. They are used to connect individual components of hydraulic systems, including: actuators, distributors, tanks and engines. Due to its versatility, it can be used in any system with a maximum oil pressure of 360 bar and a flow of up to 30L/min. It is intended for indoor and outdoor use.

Technical data:

The cable is armored, flexible and resistant to weather conditions.

The hose is crimped and ready for installation.

Type of ferrules: AB on one side A - nut with internal thread 16x1, 5,

on the other side B - straight connector with external thread M16x1.5

Inner diameter of the passage: (DN8): 8 mm

Outer diameter of the hose: 16 mm (+/- 0.3 mm)

Number of braids: 2

Cable length with clamps: 3500mm

Maximum pressure: 360Bar

Maximum flow: 30L/min

The crimped hydraulic hose consists of:

Hydraulic hose 2SN-5/16` DN8 [1538]

2x sleeve for the hose 5/16` 2SN [1535]

1x ferrule straight M16x1.5 for 5/16` hose [1526]

1x straight GZ M16x1.5 ferrule for 5/16` hose [1533]

Couplings and connections suitable for the hydraulic hose can be found in our other auctions.
