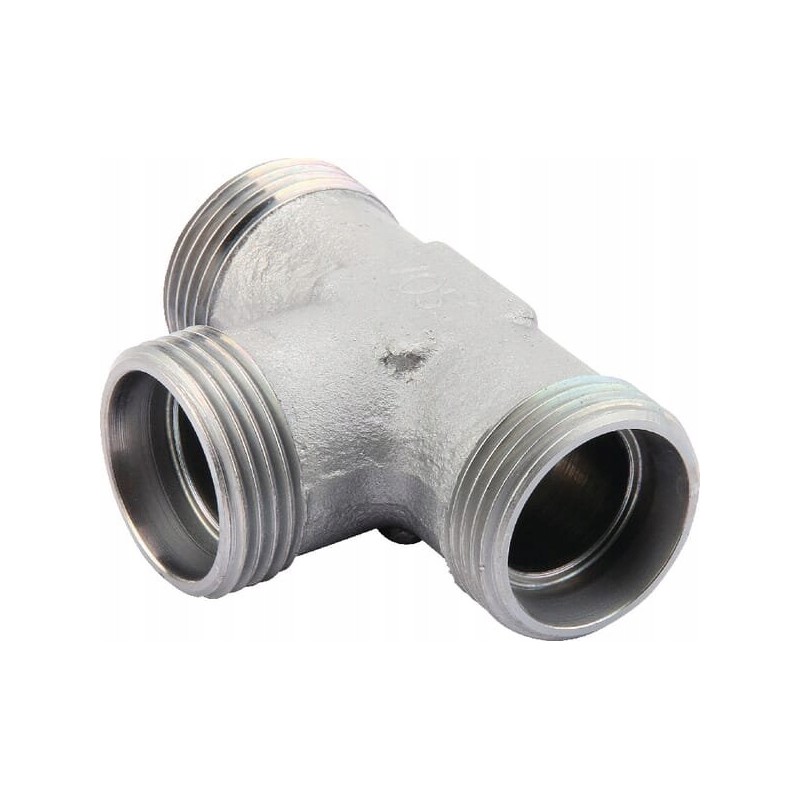

Tee connector m26x1 5 18l ts18l voss

Tee connector M26x1.5 18L Parameters

Part number: TS18L

Unit: piece

Manufacturer: Voss

EAN: 8716106786329

Properties: - High corrosion resistance

Shape: Tee (T) - 3 connections

Connector type: Thread

Connector type - male/female: Male

Diameter connection: 18 mm

Connector thread diameter: M26

Connector no. 1 thread pitch: 1.5 mm

Connector thread type: Metric

Connector wrench size: 32 mm

Connector type no. 2: Thread

Connector type no. 2 - male/ Female: Male

Connector No. 2 Diameter: 18 mm

Connector No. 2 Length: 23.5 mm

Connector No. 2 Thread Diameter: M26

Connector No. 2 Thread Pitch: 1.5 mm

Connector No. 2 Thread Type: Metric

Size wrench for connector No. 2: 32 mm

Connector No. 3 type: Thread

Connector No. 3 type - male/female: Male

Connection No. 3 diameter: 18 mm

Connector No. 3 thread diameter: M26

Connector No. 3 thread pitch: 1 .5 mm

Thread type of connector no. 3: Metric

Pipe diameter: 18 mm

Internal diameter: 15 mm

Total length: 62 mm

Body height: 24 mm

Max. working pressure: 400 BAR

Series: L

Specifications

- For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version Dimension from the axis of the joint to the end of the next joint - 23.5 mm

- 31 mm

DIN standard

- 2353

- 2401

Surface treatment

- Zinc

- Nickel plated
