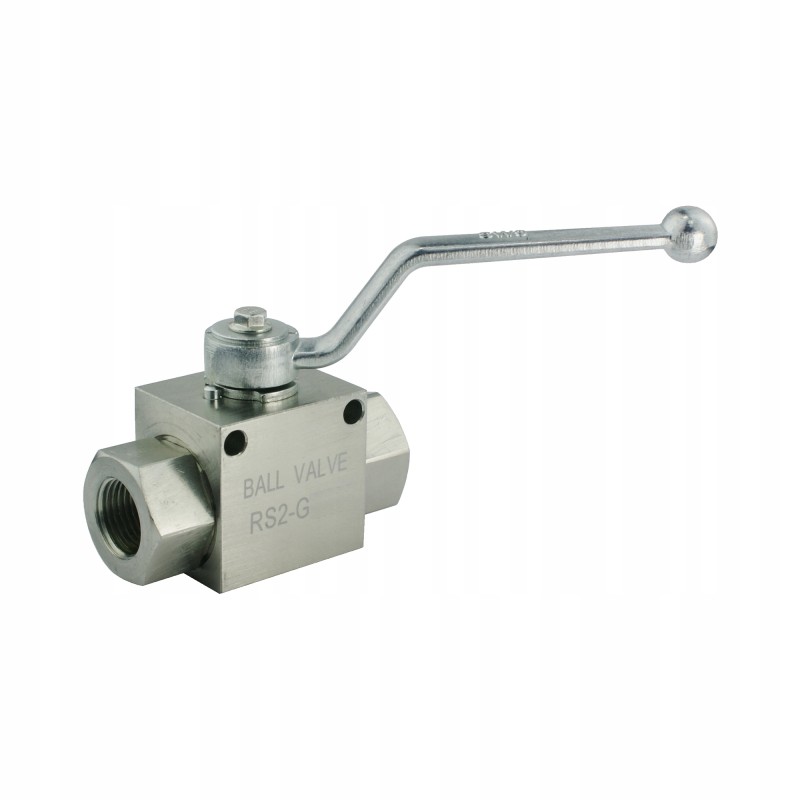

Hydraulic manual ball valve, 2-way, 1 4 25l

2-WAY HYDRAULIC BALL VALVE, TYPE 2/2, INTERNAL THREAD 1/4' Production:

Original product of the Hydrolider brand, symbol: 1.35.21.005

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and the broadly understood industry.

Principle of operation:

The 'close/open' valve is used to block the oil flow on a single hydraulic line. The valve can be closed and opened even at high pressure.

Connection:

Connect A and P to the supply line where there is a need to open and close the flow.

Technical data:

Maximum flow: 25 l/min

Number of hydraulic holes in the body: 2

Internal threads in the body: [BSP] 1/4'

Body material: galvanized steel

Permissible maximum pressure: 500 bar

Weight: 0.500 kg

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Mineral oil-based hydraulic oil

Hydraulic diagram of a 2/2 ball valve (photo):
