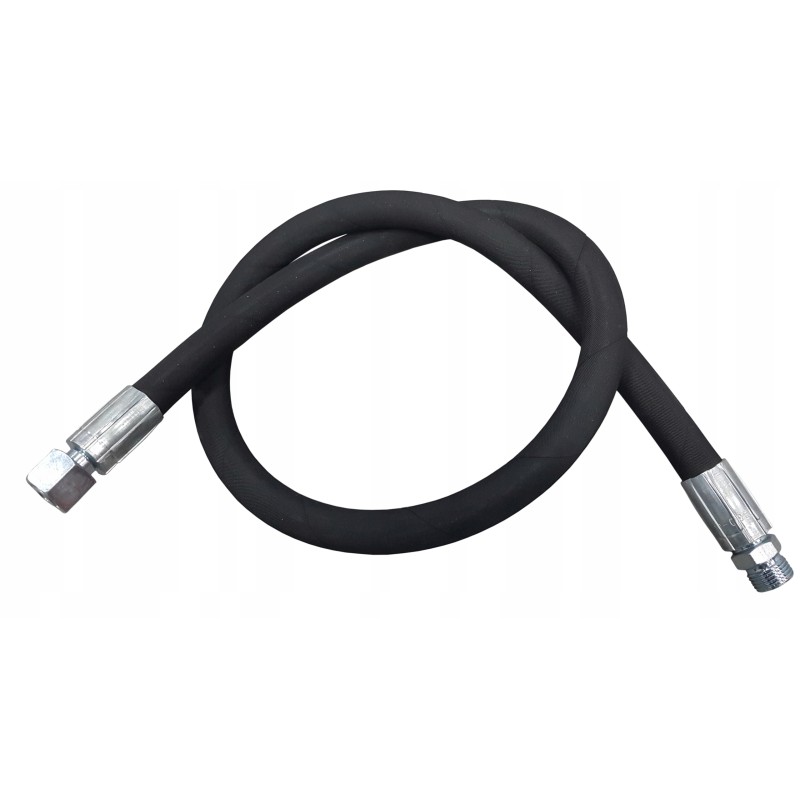

Hydraulic hose pipe dn10 18 18 ab2750 360bar

HYDRAULIC HOSE ZAKUTYP AB 10/2/2750/18-18[9032]

Application:

Hydraulic hoses are perfect for hydraulically powered machines and devices. They can be used in agriculture, horticulture, forestry and construction.

Pressure hydraulic lines are self-sealing after tightening. They are used to connect individual components of hydraulic systems, including: actuators, distributors, tanks and engines. Due to its versatility, it can be used in any system with a maximum oil pressure of 330 bar and a flow of up to 50L/min. It is intended for indoor and outdoor use.

Technical data:

The cable is armored, flexible and resistant to weather conditions.

The hose is crimped and ready for installation.

Type of ferrules: AB on one side A - nut with internal thread M18x1, 5,

on the other side B - straight connector with external thread M18x1.5

Inner diameter of the passage: (DN10): 10 mm

Outer diameter of the hose: 18 mm (+/- 0.3 mm)

Number of braids: 2

Cable length with clamps: 2750mm

Maximum pressure: 330Bar

Maximum flow: 50L/min

The crimped hydraulic hose consists of:

Hydraulic hose 2SN-3/8` DN10 [1539]

2x sleeve for the hose 3/8` 2SN [1536]

1x ferrule straight M18x1.5 for 3/8` hose [1527]

1x straight GZ M18x1.5 ferrule for 3/8` hose [1534]

Couplings and connections suitable for the hydraulic hose can be found in our other auctions.
