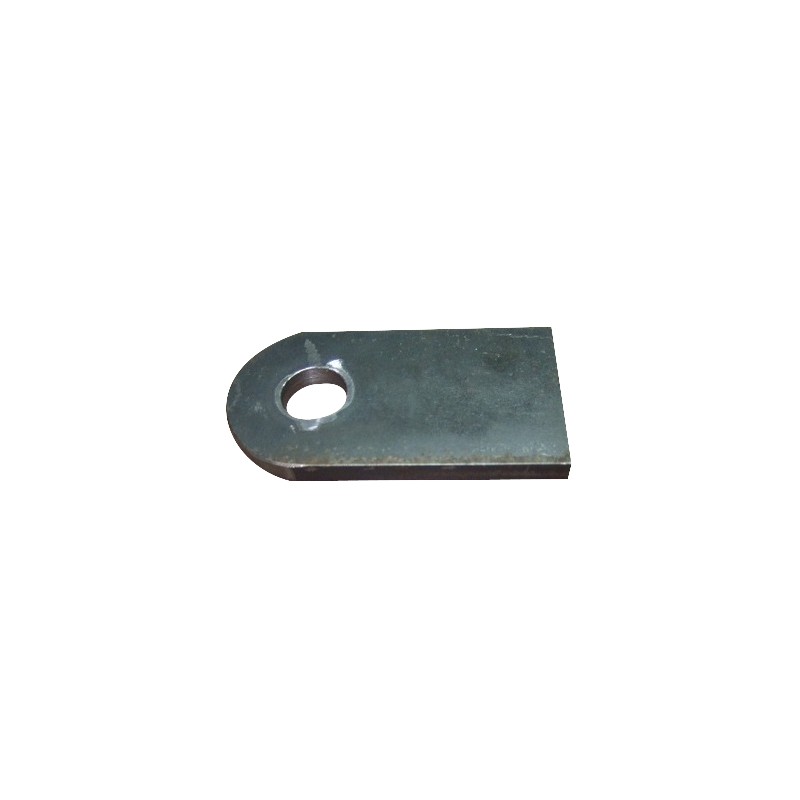

Mounting the actuator eyelet for welding, diameter 40

Eye for mounting a hydraulic cylinder fi 40 mm Manufacturer: SM-G (SKRAW MET GROUP) CODE SKRAW MET: [0105] Welding eye for mounting a hydraulic cylinder FI 40 mm.

Dear customer! The nominal tolerance range of the hole made can be up to -0.5 mm (i.e. FI 39.5 mm - 40 mm), which means that the pin can fit quite tightly.

Technical specifications: Total height: 140 mm

Lug width: 70 mm

Hole diameter: 40 mm

Distance from the center of the hole to the base: 105 mm

Distance from the center of the hole to the top of the arch: 35 mm

Ear thickness: 10 mm

On our other auctions you will find other actuator mounting components.
