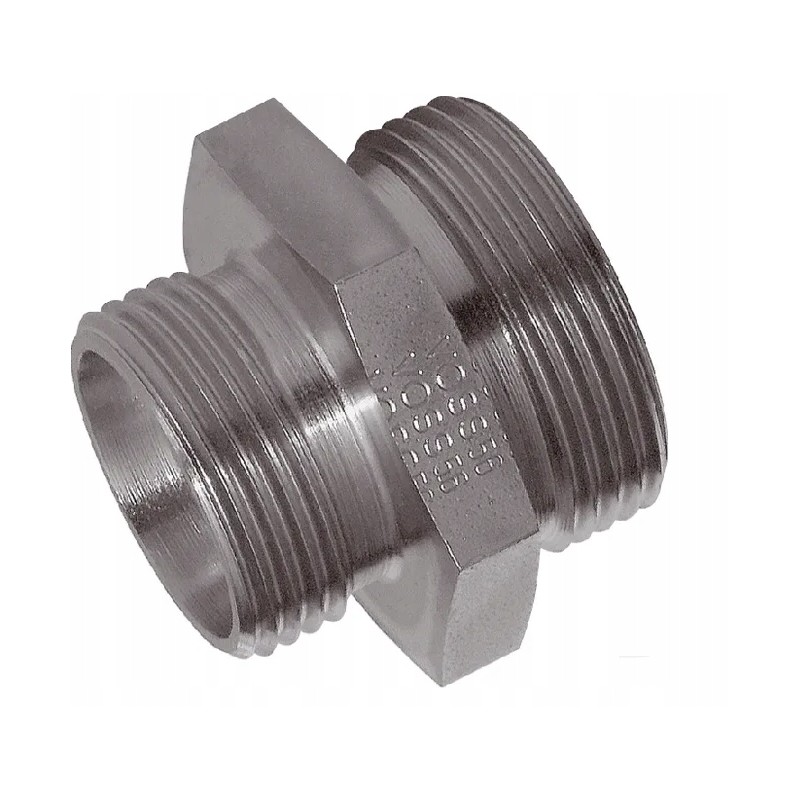

Straight reducing connector m14x1 5 8l m12x1 5 6l

GS86L Straight Reducing Connector M14x1.5 8L - M12x1.5 6LAdvantages

Limited risk of leakage

Product Details

For direct connection to metric hose nut or pre-assembled connector - High corrosion resistance

Hydraulic hoses

Hydraulic pipes

Benefits

Low risk of leakage

Shape< p>

Straight - 2 sides of connection

Connector type no. 1

Cutting ring

Connector type no. 1 - male/female

Male

Connection diameter

8 mm

d2 Connector no. 1 thread diameter

M14

Thread Pitch for Connector No. 1

1.50 mm

Connector Thread Type

Metric

SW1 Wrench Size for Connector No. 1

14.0 mm

Connector type no. 2

Cutting ring

Connector type no. 2 - male/female

Male

Diameter of connection no. 2

6 mm

d1 Thread diameter of connection no. 2

M12

Thread pitch of connection no. 2

1.50 mm

Connection No. 2 Thread Type

Metric

S2 Wrench Size for Connector No. 2

14.0 mm

l2 Distance between joints

11 mm

Pipe diameter

8 mm

6 mm

DIN standard

2401

Inner diameter

4 mm

lg Length

40.5 mm

L Total length

40.5 mm

Max working pressure

500 BAR

Series

8L

6L
