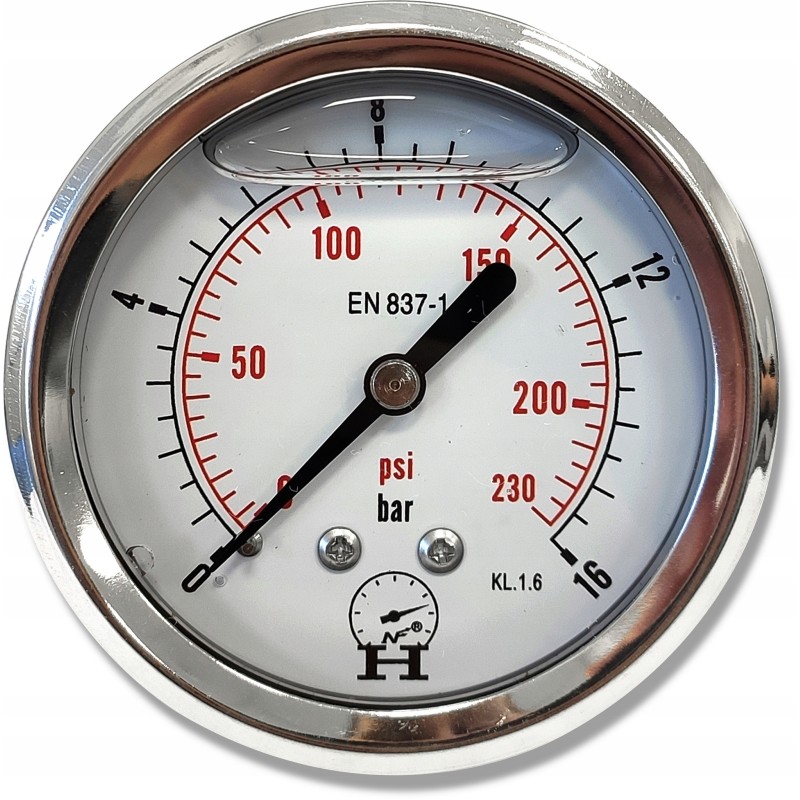

Pressure gauge 0 16 bar, rear connection

GLYCERINE MANOMETER 63mm WITH CONNECTION FROM THE REARCODE SKRAW-MET: [2212]PRESSURE MEASUREMENT RANGE: 0 - 16 BARMANometers intended for measuring the pressure of liquids in closed systems for measuring the pressure of gases and liquids that do not react with copper alloys.

Manometer inside filled with glycerin. The glycerin pressure gauge differs from standard pressure gauges by having an interior filled with glycerin, which secures and protects the pointer against vibrations and oscillations.

Glycerin also allows you to increase the level of measurement accuracy.

It has a plug for equalizing the pressure inside manometer with atmospheric pressure.

Application:The glycerine manometer is perfect for hydraulically powered machines and devices.

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and the broadly understood industry.

(SHOW PHOTO - depending on the delivery, the pressure gauge may differ visually, but its functionality is identical to the description.) Technical data: Pressure measurement range: 0 - 16 Bar

Outer diameter of the clock: 63 mm

Thickness of the clock: 30 mm

Connection port thread [BSP]: 1/4' (requires a special connection available on our other auctions)

Operating temperature: -10°C to +50°C

Accuracy class: 1.6

Material: Steel housing, viewfinder glass
