3-section pneumatic hydraulic distributor

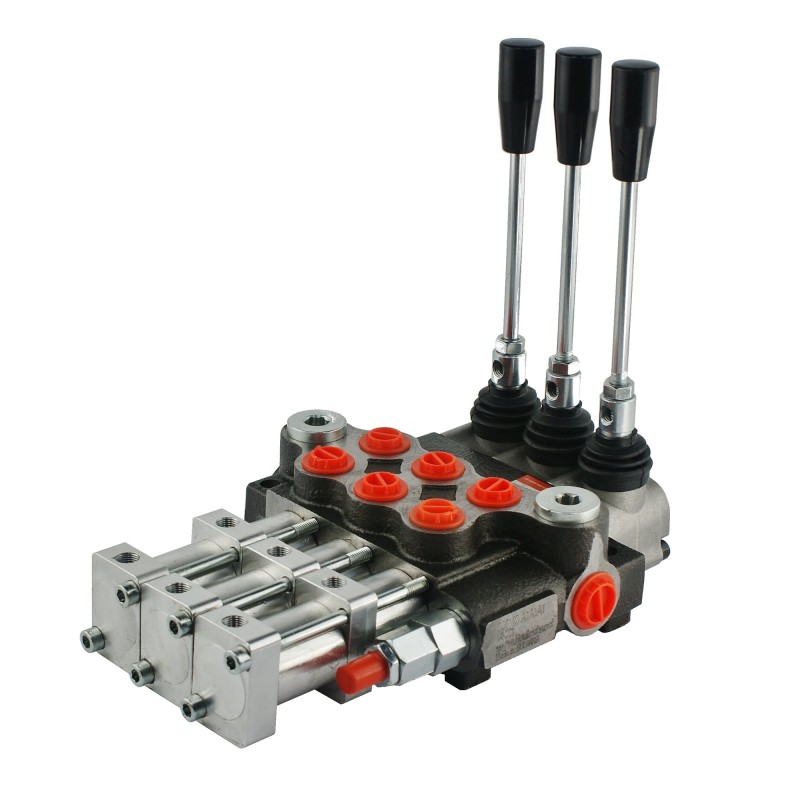

3-SECTION HYDRAULIC DISTRIBUTOR P40, CONTROLLED BY PNEUMATICALLY OR LEVERSProduction:

Original product of the Badestnost brand, manufacturer's symbol: 1.10.00.130

Application:

It is widely used in hydraulic systems in industrial machines and trucks and vehicles used in transport, agriculture, horticulture, forestry, construction and industry.

Used in vehicles and machines that have a pneumatic system equipped with a controller capable of controlling the hydraulic distributor.

Technical data:

Recommended oil flow in the hydraulic system: 0 - 40 l/min.

Example control: three double-acting cylinders.

Possibility of serial connection to an existing hydraulic system (pressure sleeve required).

Manual control:

Three-position levers (1 - 0 - 2), spring-loaded, i.e. they return to the vertical by themselves:

Neutral position 0 (lever set vertically), the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (lever set diagonally forward), the actuator piston rod extends.< p>

Working position 2 (lever set in a backward diagonal position), the actuator piston rod retracts.

Pneumatic control:

Neutral position 0 (no pneumatic pressure on the ports) the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (pneumatic pressure on the first port) the actuator piston rod extends.

Working position 2 (pneumatic pressure on the second port) actuator piston rod hides.

On the right side, hydraulic diagram of the distributor:

PARAMETERS IN THE HYDRAULIC SYSTEM:Connection:

Power supply from the pump (P1 , P2): BSP 1/2'' female thread

Return to tank (T1, T2): BSP 1/2'' female thread

Sections (A1, A2, A3 , B1, B2, B3): BSP internal thread 3/8''

Series connection (N): BSP internal thread 1/2'

Pressure range:

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on the sections: 300Bar

The opening pressure of the overflow valve increases proportionally with flow increase:

180 bar at 10 l/min

190 bar at 20 l/min

200 bar at 30 l/min

210 bar at 40 l/min

Sets for precise pressure measurement can be found in the Manometers - measuring sets section

It is recommended to check and set the appropriate pressure before starting.

Possibility of self-adjustment, full turn change by 30Bar.

Oil types recommended by AGRICOLA:

Thinner, high-quality oil: LOTOS AGROL BOXOL 26

Thicker, high-quality oil quality oil: FUCHS AGROFARM HYDRATEC HVI 46

Recommended oil temperature range:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: - 15 C to +80 C

PARAMETERS IN THE PNEUMATIC SYSTEM:Connection:

Ports 1 and 2, internal thread in the body: BSP 1/8'

Range pressures:

Recommended air pressure 5 - 10 bar
