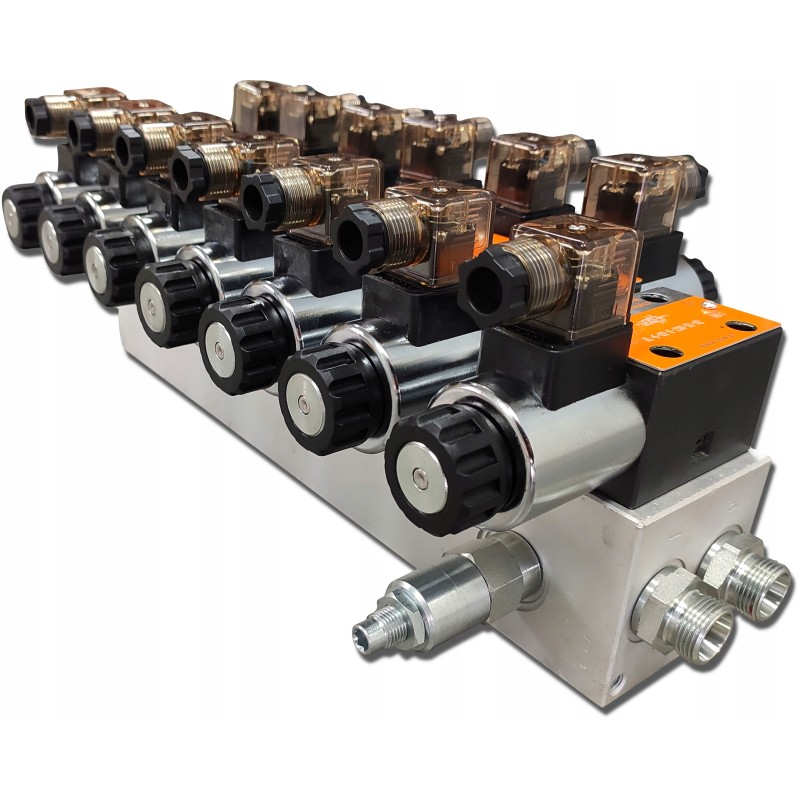

Cetop hydraulic distributor 6 sections 60l 24v

6-SECTION HYDRAULIC DISTRIBUTOR CETOP 03 NG6 ELECTRICALLY CONTROLLED 24V CODE SKRAW-MET:[7906]Can be used in hydraulic systems in agriculture, fruit growing, forestry, construction and broadly understood industry.

The distributor is adapted to various types of machines such as:

agricultural machines,

tractors,

sprayers,

turs, cyclops,

loaders HDS,

construction machinery, loaders,

excavators,

sweepers,

industrial machinery

Hydraulic distributor with one starting (unloading) section and 6 working sections.

The first section is responsible for the necessary unloading of the hydraulic pump when we do not control any working section. Furthermore, in order to start the working sections, the electrical signals must be configured to 'pass' through the starting section simultaneously each time. This means that no working section will start unless current is applied to the starting section.

Electrical plugs have diodes that light up when current is applied to the coil.

Technical Specifications: Power supply direct current (DC) 24V

Recommended oil flow in the system: 0 - 60 l/min

Connections with an M18x1.5 output and a set of 24 VDC electrical plugs with light-emitting diodes

Material: Distributor body and steel sliders, electric plugs and plastic tightening nuts, block made of steel or aluminum depending on the batch.

Example application: control of six double-acting actuatorsThe sets sent are prepared for self-assembly due to the risk of damage during transport by the transport company CONTROL Two-position slider of the starting section

(1 - 0) When the slider is in the neutral position (0), the oil goes to the overflow and the pump is relieved

on the spring it returns to the neutral position on its own (after cutting off the power supply)

Neutral position 0 (power supply to the coil CUT OFF) the oil goes to the overflow - NO PRESSURE FOR A SEC. WORKING SECTIONS

Working position 1 (power supply to the coil OPEN) PRESSURE ON THE WORKING SECTIONS

The three-position slider of the working section (1 - 0 - 2) on a spring returns to the neutral position by itself (after cutting off power supply)

Neutral position 0 (power supply to the coils CUT OFF) the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (power supply to the first coil) the actuator piston rod extends .

Working position 2 (power supply to the second coil), the actuator piston rod retracts.

Connection (internal threads in the body): Power supply (P) BSP 1/2''

Return (T) BSP 1/2''

Output to sections (A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6) BSP 3/8'

Pressure range: Max. supply pressure: 250Bar

Max. return pressure: 50Bar

Max. pressure on sections: 300Bar

Overflow valve factory set to 175Bar

Possibility of self-adjustment, full turn change by 30Bar.

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C
