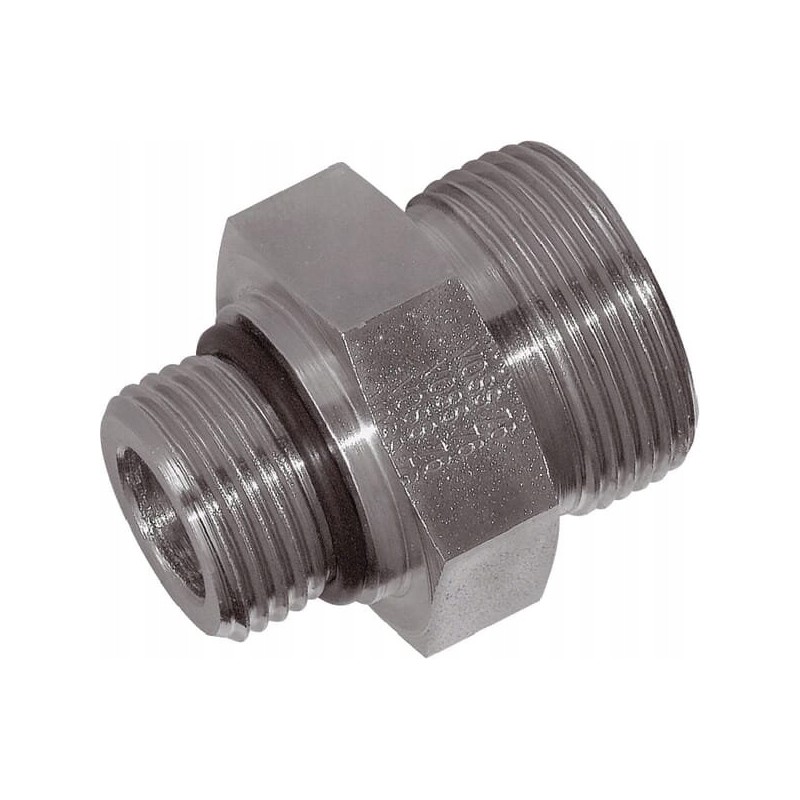

Straight connection m22x1 5 15l 9 16uf

Straight connection M22x1.5 15L 9/16 UNF Parameters

Part number: GES15L916UNF

Unit: Piece

Manufacturer: Voss

Shape: Straight - 2 sides connector

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connection diameter: 15 mm

Connector thread diameter: 9/16 inch

Connector No. 1 Thread Diameter: M22

Connector No. 1 Thread Length: 10 mm

Connector No. 1 Thread Pitch: 1.50 mm

Connector Thread Type: UNF

Connector No. 1 Wrench Size: 17.7 mm

Wrench Size for Connector No. 1: 24.0 mm

Connector type No. 2: Seal ring

Connector type No. 2 - male/female: Male

Connection thread diameter No. 2: 9/16 inch

Number of threads per inch of connector No. 2 thread: 18

Connection thread type No. 2: UNF

Wrench size for connector No. 2: 27.0 mm

Pipe diameter: 15 mm

SAE standard: 514

Internal diameter: 7 mm

Length: 31 mm

Max. working pressure: 400 BAR

Seal material: Rubber nitrile [NBR]

Series: L

Tightening torque max.: 30 N m

Advantages

- Limited risk of leakage Product details

- For direct connection to a metric hose nut or pre-assembled connector - Highly resistant to corrosion - Hydraulic Hoses

- Hydraulic pipes - Available with Viton seal on request Benefits

- Low risk of leakage Dimension from the axis of the joint to the end of the next joint 29mm

Dimension from the axis of joint no. 2 to the end of the next joint 14mm

DIN standard

- 2353

- 3852

- 2401

Surface treatment

- Zinc

- Nickel plated
