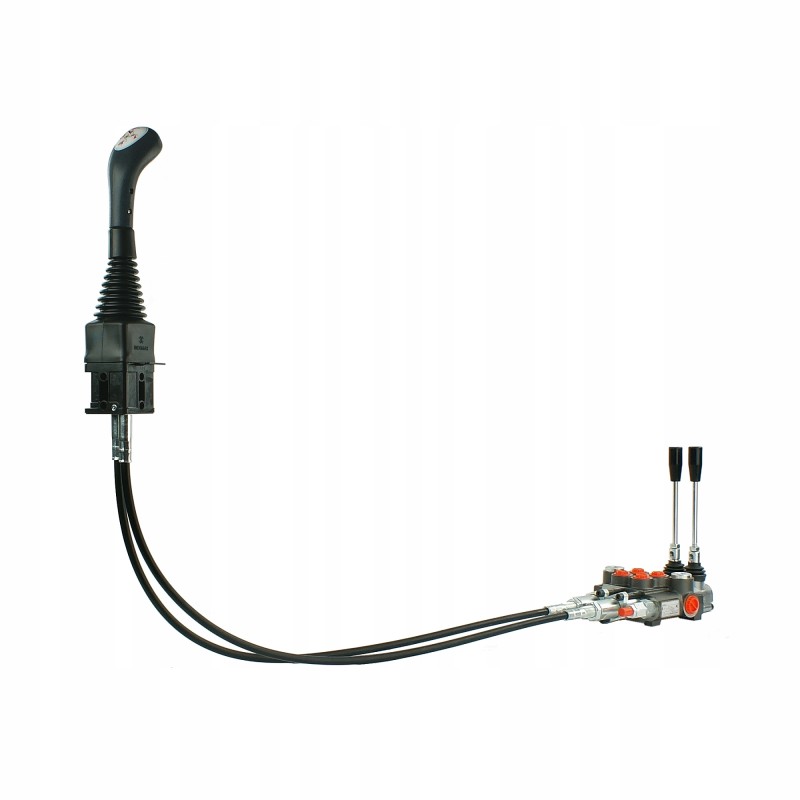

HYDRAULIC DIVIDER, 2 SECTIONS, 40L/min

WITH ALTERNATIVE CONTROL

INCLUDED WITH 3M CABLES AND JOYSTICK WITH 2 BUTTONS

Production:

Distributor: Badestnost, symbol: 1.10.34.020

Links: Hydrolider, symbol: 1.20.00.005.1

Joystick: Indemar, symbol: 1.15.00.002

Application:

The set is adapted to various types of machines, such as: agricultural, fruit-growing, forestry, construction, industrial machines, tractors, sprayers, tourers, cyclopes, HDS loaders, loaders, excavators, sweepers and other hydraulically controlled devices .

It is used wherever, for reasons of safety, better control comfort and the need to maintain cleanliness, it is necessary to install the distributor outside the cabin. Only the control unit (in this case cables and joystick) remains in the cab.

Levers located directly next to the distributor provide alternative control of the hydraulic system. This solution allows you to control the same distributor from two different places on the machine.

2-SECTION HYDRAULIC DIVIDERTechnical data:

Recommended oil flow in the system: 0 - 40 l/min

Maximum supply pressure: 250 bar

Maximum return pressure: 50 bar

Maximum pressure on the sections: 300 bar

The opening pressure of the overflow valve increases proportionally with increasing flow: 180 bar at 10 l/min

190 bar at 20 l/min

200 bar at 30 l/min

210 bar at 40 l/min

Sets for precise pressure measurement can be found in the Manometers - measuring sets section

Possibility of self-adjustment, full turn of the valve change by 30 bar< p>

Connection:

Internal threads. in the body: supply: 1/2'', return: 1/2'', sections: 3/8''

Type and temperature of oil:

Permissible ambient temperature: - 40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Thinner, high-quality oil: LOTOS AGROL BOXOL 26

Thicker, high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46

Control and principle of operation:

Example control: single-sided or double-sided cylinders as well as hydraulic motors in both directions.

Sliders 3 -position (1 - 0 - 2), spring-loaded, i.e. they return to the neutral position on their own after releasing the lever.

In the neutral position, the oil flows freely into the return line, the pump is unloaded.

Possibility of serial connection to an existing system (pressure sleeve required).

JOYSTICK CONTROLING SECTIONS IN THE DISTRIBUTOR ↵

Technical data:

Joystick connection system with cables: on balls

Body material: durable plastic

Control the first section: handle movement left - right

Control the second section: handle movement front - back

Number of electric buttons: 2

Lever movement lock: YES

CABLES CONNECTING THE JOYSTICK WITH THE DISTRIBUTOR ↵

Length of control cables: 3000mm

Cable outer material: plastic

Material of cable clamps and ends: galvanized steel
