Multiplier 1 3 8m g pump 28l hydrolider

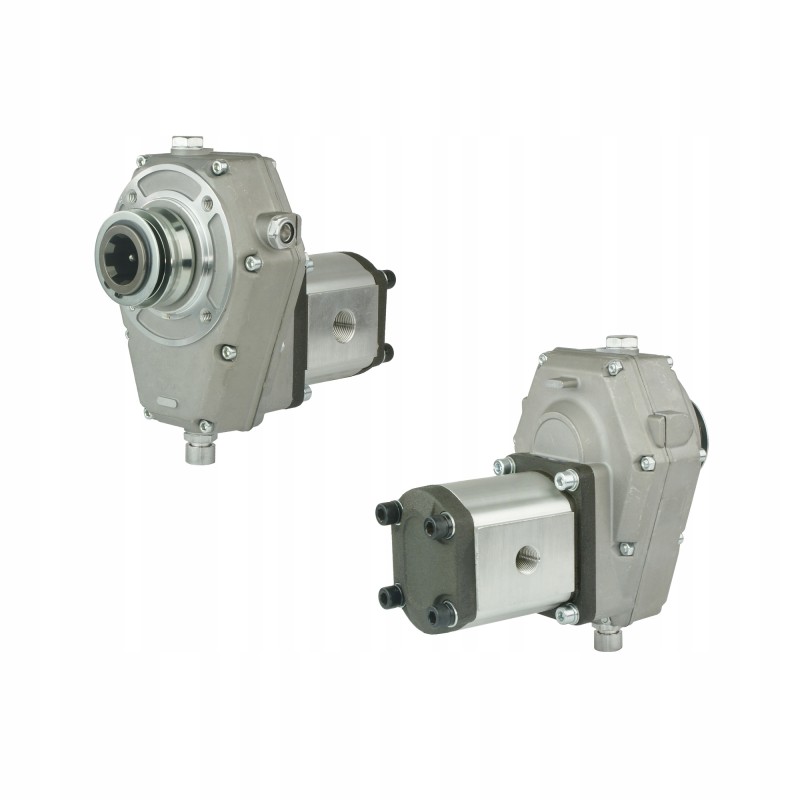

SMALL 'MINI' MULTIPLIER IN A SET WITH A HYDRAULIC PUMP Set includes:

Multiplifier 1:3.8

Gear pump 14 cm3

Connecting clutch

Screws and connections

Production:

Original product of the Hydrolider brand, symbol: 1.45.05.028

Application:

It is widely used in systems hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

A compact set, ideal for small and medium-sized forestry, construction machines, tractors and other machines with a PTO shaft at the output. The small gear allows the set to be installed in hard-to-reach places and on tractors and machines that have little space to install the gear.

Used wherever the original hydraulic pump installed in the machine is not powerful and efficient enough or in the case of when an additional, new hydraulic system is needed to control the newly installed equipment.

Technical data of the set:

The gearbox is mounted on the PTO shaft using a latch, this solution allows it to be can be mounted or dismantled quite quickly if it turns out that we need a PTO shaft for another machine.

Efficiency of the set:

Efficiency depends on the revolutions of the PTO shaft to which the set is connected. The higher the PTO revolutions, the more efficient the pump.

Efficiency of the set in l/min relative to the PTO shaft revolutions:

220 rpm per PTO efficiency 12L/min

320 rpm on PTO capacity 17L/min

430 rpm on PTO capacity 23L/min

540 rpm on PTO capacity 28L/min

Efficiency of the set in l/min relative to engine revolutions in tractors C-330, C-360, C-385, ZETOR, MF 255 and derivatives:

800 rpm on the engine efficiency 12L/min

1200 rpm on the engine, efficiency 17L/min

1600 rpm on the engine, efficiency 23L/min

2000 rpm on the engine, efficiency 28L/min

Technical data of the gearbox:

Transmission ratio: 1:3.8 Max power: 10 kW

Fits a typical 1.3/8' PTO shaft

Rotations on the shaft PTO: max 540 rpm

Has a sight glass for checking the gear oil level

Possibility of working with pumps of the second group

Material: body - aluminum, gears - steel

Requires filling with gear oil.

When used for the first time, to increase the durability of the gear, it is recommended to change the oil after the first 50 operating hours.

Pump technical data:< p>

Geometric volume: 14 cm3/rev

Rotation direction: right

Maximum rotation speed: 2500 rpm

Maximum operating pressure continuous in this set: up to 22 MPa

Integration:

Additional modules and accessories needed when creating new hydraulic systems on machines and tractors, available at other auctions (photo):

Important!!!

Agricola sets have been designed in such a way that they can be easily assembled by yourself. Due to the safety of the goods during transport and restrictions resulting from the regulations of courier companies, the set is sent untwisted.
