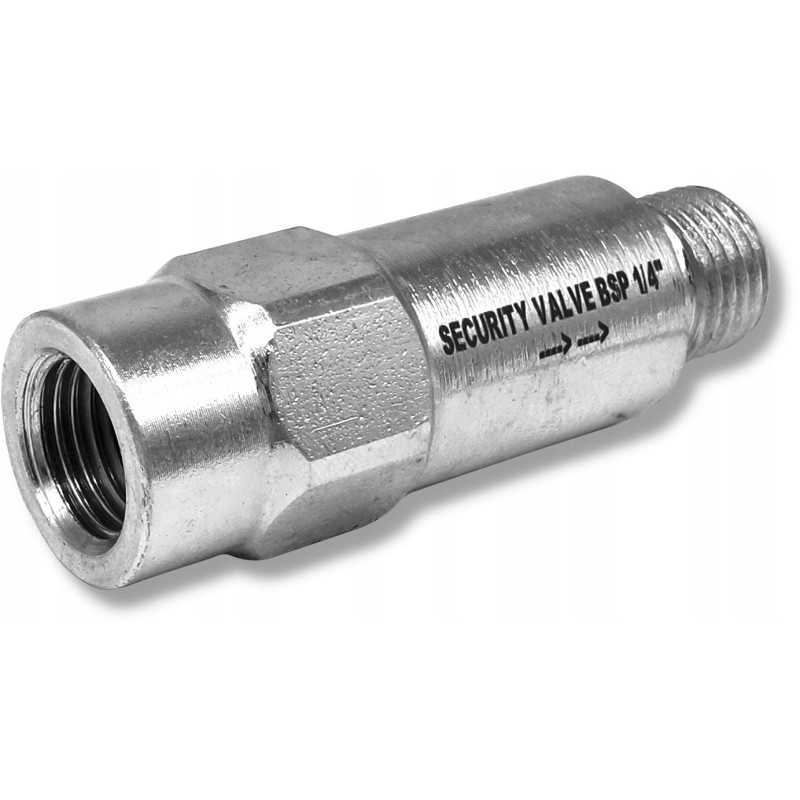

Trailer safety valve vuba ab 1 4 20l

SAFETY VALVE FOR VUBA AB 1/4' TRAILER CODE SKRAW-MET: [3070] Used in hydraulic systems used in the broadly understood industry, agriculture, construction and forestry.

The valve is most often used with various types of hydraulic cylinders (which are exposed to high forces pressure) in order to protect them in the event of a cable failure or breakage.

In such a situation, the valve protects the system against loss of oil contained in the cylinder and, in trailers, against sudden lowering of the unloading box.

The valve should be screwed directly to the hydraulic cylinder body, otherwise it will not be secured. Technical Specification: Maximum flow: 20L/min

Number of hydraulic holes: 2

Internal thread [BSP]: 1/4'

External thread [BSP]: 1/4'

Maximum allowable pressure: 350 bar

Permissible ambient temperature: -30°C to +50°C

Permissible oil temperature: -30°C to +80°C

Oil type: Mineral oil-based hydraulic oil

Body material: galvanized steel
