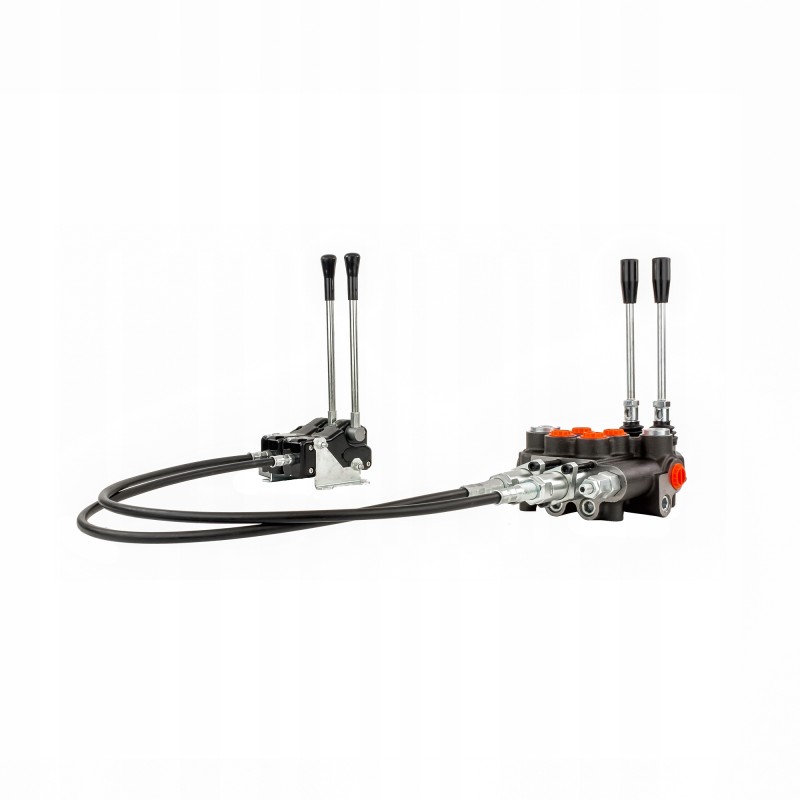

HYDRAULIC DIVIDER, 2 SECTIONS, 80L/min

WITH ALTERNATIVE CONTROL

INCLUDED WITH 1.5M CABLES AND BODIES WITH LEVER

Production:

Distributor: Badestnost, symbol: 1.10.35.020

Links: Hydrolider, symbol: 1.20.00.012.1

Lever bodies: Hydrolider, symbol: 1.15.00.020

Application:

The set is suitable for various types of machines such as: agricultural, fruit-growing, forestry, construction and industrial machines, tractors, sprayers, tourers, cyclopes, HDS loaders, loaders, excavators, sweepers and others hydraulically controlled devices.

It is used wherever, for reasons of safety, better control comfort and the need to maintain cleanliness, it is necessary to install the distributor outside the cabin. Only the control unit remains in the cab (in this case, cables and lever bodies).

Levers located directly next to the distributor provide alternative control of the hydraulic system. This solution allows you to control the same distributor from two different places on the machine.

HYDRAULIC DISTRIBUTORTechnical data:

Recommended oil flow in the system: 0 - 80L/min

Maximum supply pressure: 250 bar

Maximum return pressure: 50 bar

Maximum pressure on the sections: 300 bar

The opening pressure of the overflow valve increases proportionally with the increase flow: 180 bar at 20 l/min

190 bar at 40 l/min

200 bar at 60 l/min

210 bar at 80 l/ min

Sets for precise pressure measurement can be found in the Manometers - measuring sets section

Possibility of self-adjustment, a full turn of the valve changes by 30 bar

Connection:

Female threads in the body: supply: 1/2'', return: 3/4'', sections: 1/2''

Internal thread of the cable tube: M16x1.5

Thread internal slider tip: M6x1.5

Type and oil temperature:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Thinner high-quality oil: LOTOS AGROL BOXOL 26

Thicker high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46

Control and operating principle:

Example control: single-sided or double-sided cylinders as well as hydraulic motors in both directions.

3-position sliders (1 - 0 - 2), spring-loaded, i.e. they return to the neutral position on their own after releasing the lever.

In the neutral position, the oil flows freely into the return line, the pump is relieved.

Possibility of serial connection to an existing system (pressure sleeve required).

BODIES WITH LEVER AND CABLESTechnical data:

Body material: plastic

Material of mounting brackets to the base: galvanized steel

Distributor slider control: in both directions< p>

Possibility of series connection with other, same bodies

Total body thickness: 49mm

Length of control lines: 1500mm

External thread of the armor tip cables: M16x1.5

External thread of cable cable ends: M6x1
