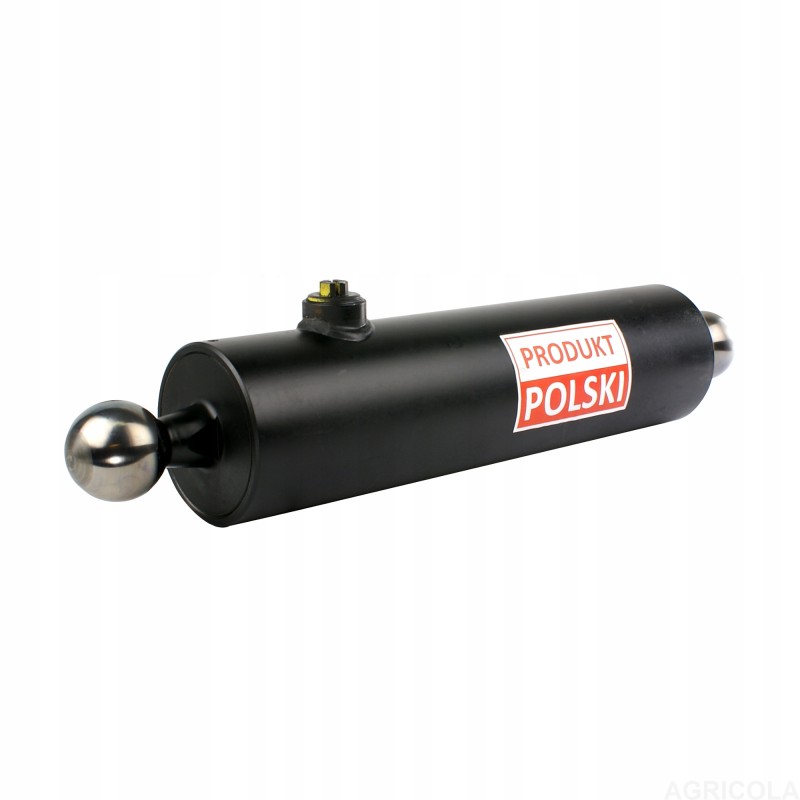

Telescopic actuator 75 2 500 hl 6011 hydrolider

TRAILER TELESCOPIC CYLINDER HL6011 TRAVEL 500mmProduction:

Original product of the Hydrolider brand, manufacturer's symbols: 1.30.80.008, CT 75/2/500

Application:

It has a wide range of used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The actuator is mainly intended for an agricultural trailer type HL6011 with side tipping, in which two such actuators are installed. It can be used in the production of other trailers with similar parameters.

General information:

Number of sections (piston rods): 2

Hydraulic hole: internal thread M22x1.5 (as in the original)

Maximum speed of the piston rod 0.5m/s

Oil requirement: 2 liters

Maximum working pressure: 20 MPa

Sensitivity threshold (start-up pressure): 0.5 MPa

Operating parameters:

Permissible ambient temperature: -40ºC to +60ºC

Permissible oil temperature : -15ºC to +80ºC

Fluid type: mineral oil-based hydraulic oil

DEAR CUSTOMER, READ THIS BEFORE CHOOSE AN ACTUATOR SUPPLIER:

What you see on the picture The photo shows only the metal elements that make up the actuator. In fact, the actuator is only worth as much as the internal seals used in its construction. We ensure that all our actuators have reinforced seals that are not manufactured in China or other Far Eastern countries. If you care about quality and durability, choose Hydrolider cylinders, which are the only ones that guarantee reliability for years.

It is worth knowing:

Hydraulic telescopic cylinders consist of several cylinders, which are increasingly of smaller diameter, assembled one inside the other and sliding out one by one. In this way, it is possible to obtain a large stroke with a short length of the folded actuator.

In single-acting hydraulic telescopic actuators, the pressurized oil acts on one side, causing the individual actuator members to extend. The return of the telescope is carried out under the influence of an external force (usually under the influence of the weight of the trailer's unloading box).

The oil inflow and outflow takes place through the same conduit, the direction of oil flow is controlled by the machine operator through the distribution valve (lever).

The recommended angle of inclination of the box when unloading should be between 40 and 45 degrees. The mounting location of the actuator should be halfway along the length of the load box. Below are useful tables and diagrams for selecting the appropriate actuator, knowing the length of the load box:

Data useful when selecting an actuator for the load box:

max weight of bulk cargo + weight of the box (12MPa): 3 .5 T

max weight of loose cargo + weight of box (16MPa): 4.5 T

maximum distance from the actuator to the hinges (D): 750mm

length of the box when tipping to the rear (DS): 1500mm

possibility of extending the box by extending it beyond the hinges (G)

The actuator extension force on individual sections 12/16MPa (T):

first section diameter 75mm - 5.4T / 7.2T

second section diameter 60mm - 3.5T / 4.6T
