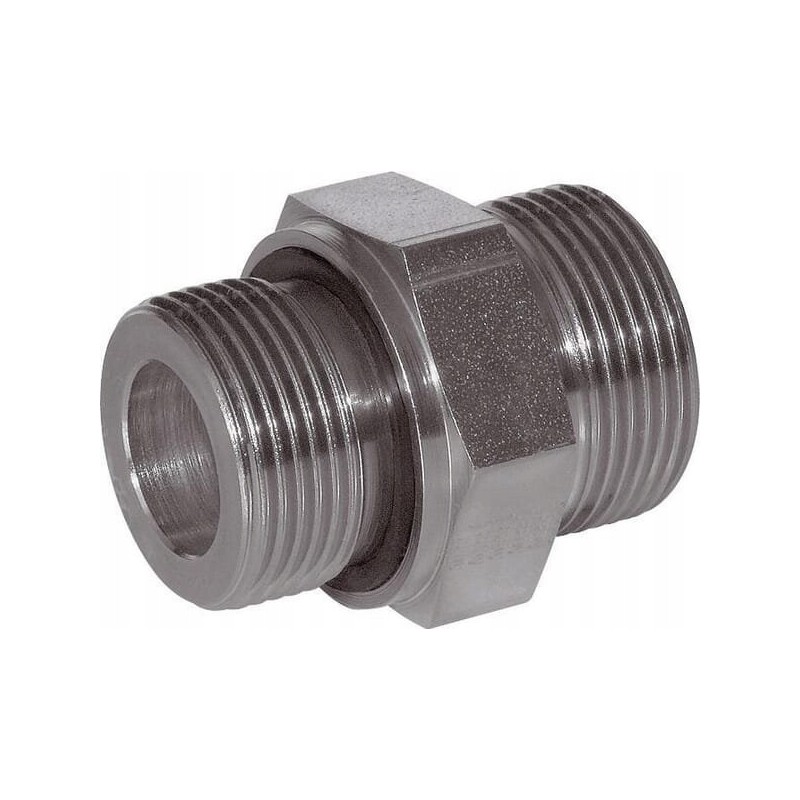

Straight connection with seal 1 bsp m36x2 28l

Straight connection with gasket 1' BSP - M36x2 28L Parameters

Part number: GES28LR1WD

Unit: Piece

Manufacturer: Voss

EAN: 8716106786107

Shape: Straight - 2 sides connector

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connection diameter: 28 mm

Connector No. 1 Thread Diameter: M36

Connector Thread Length: 18 mm

Connector No. 1 Thread Pitch: 2.00 mm

Connector Thread Type: BSP

Connector No. 1 Wrench Size: 39.9 mm

Connector No. 1 Wrench Size: 41.0 mm

Connector No. 2 Type: O-ring

Connector No. 2 Type - Male/Female: Male

Connection No. 2 Thread Diameter: 1 inch

Threads per Inch for Connector No. 2 Thread: 11

Connector No. 2 Thread Type: BSP

Wrench Size for connector no. 2: 41.0 mm

Pipe diameter: 28 mm

ISO standard: 228

Internal diameter: 23 mm

Length: 43 mm

Max. working pressure: 250 BAR

Seal material: Nitrile rubber [NBR]

Series: 28L

Tightening torque max.: 230 N m

Advantages

- Limited risk of leakage Product details

- For direct connection to a metric hose nut or pre-assembled connector - Highly resistant to corrosion - Hydraulic Hoses

- Hydraulic pipes - Do not use for 4-braid HDR (4SP) hoses Benefits

- Low risk of leakage Dimension from the axis of the joint to the end of the next joint 34mm

Dimension from the axis of joint no. 2 to the end of the next joint 17.5mm

DIN standard

- 2353

- 228

- 3852

- 2401

Surface treatment

- Zinc

- Nickel plated
