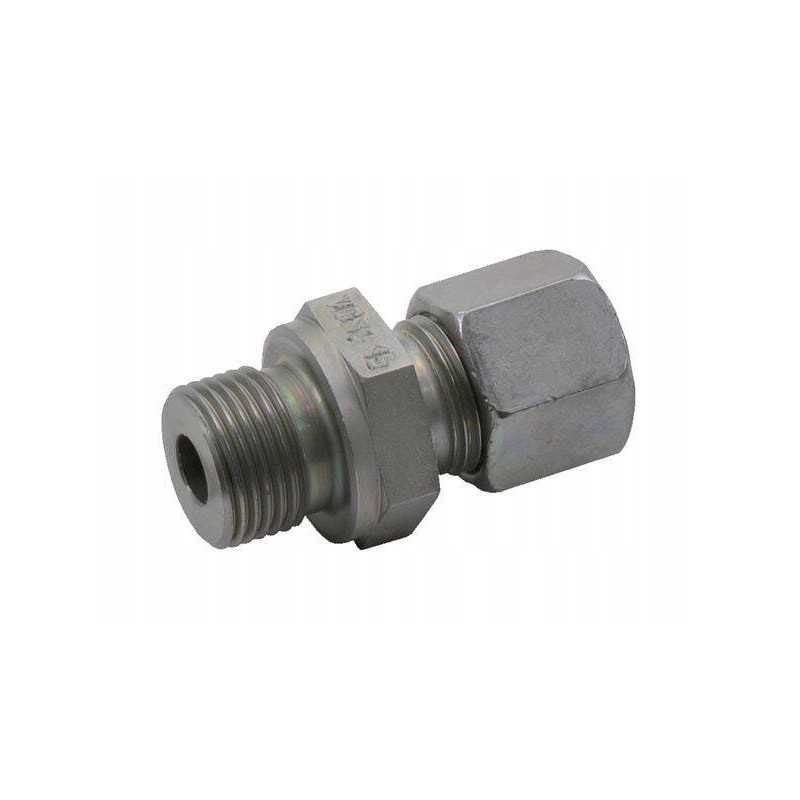

Straight connection with nuts m18x1 5 12l r1 4

Straight connection with nut M18x1.5 12L R1/4 Parameters

Part number: GEV12LR14

Unit: Piece

Manufacturer: Voss

EAN: 8719607037952

Shape: Straight - 2 sides of the connection

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connection diameter: 12 mm

Connector No. 1 thread diameter: M18

Connector thread length: 12 mm

Connector No. 1 thread pitch: 1.50 mm

Connector Thread Type: Metric

Connector No. 1 Wrench Size: 22.0 mm

Connector No. 2 Type: Thread

Connector No. 2 Type - Male/Female: Male

Connection No. 2 Thread Diameter: 1/4 inch

Connection No. 2 Thread Type: BSP

Wrench Size for connector no. 2: 19.0 mm

Pipe diameter: 12 mm

ISO standard: 228

Max working pressure: 400 BAR

Series: 12L

Advantages

- 2S cutting ring

Product details

- 2S cutting ring - Optimal connection with the cutting ring and excellent performance

- High corrosion resistance - Hydraulic hoses

- Hydraulic pipes

Dimension from the axis of the connector to the end of the next connector

26 .5 mm

Dimension from the axis of connector no. 2 to the end of the next connector

12 mm

DIN standard

- 2353

- 228

- 3852

- 2401

Surface treatment

- Zinc

- Nickel-plated
