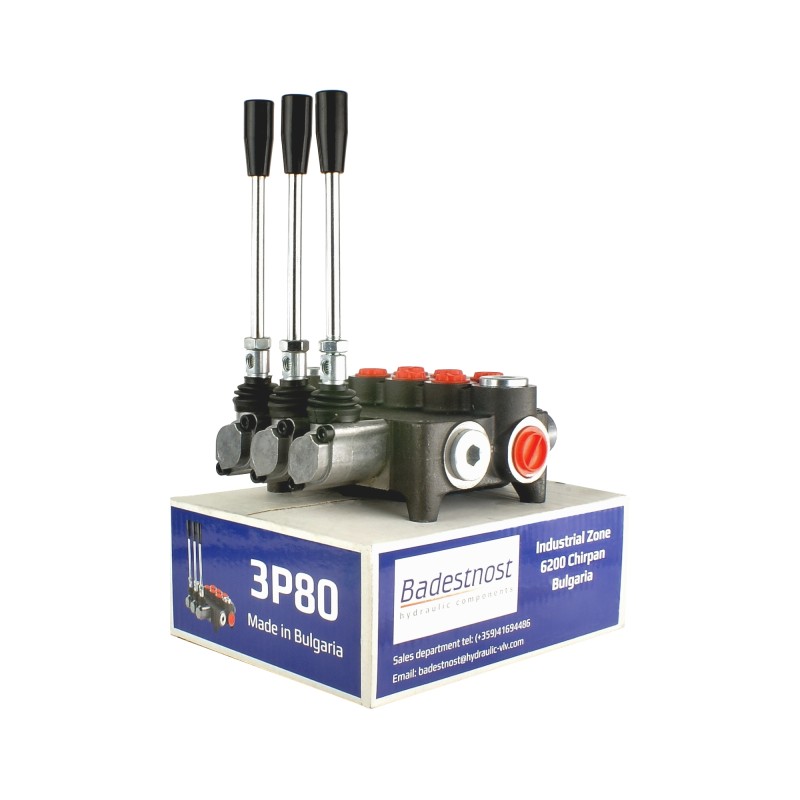

Hydraulic distributor 3s 80l 3xa1 badestnost

BEWARE OF COUNTERFEITERS!!! AT THIS AUCTION YOU WILL BUY AN ORIGINAL DISTRIBUTOR FROM THE BULGARIAN PRODUCTION OF BADESTNOST Why are fake fakes cheaper than the original ones?

Primarily because they are characterized by much lower quality and durability as well as poor precision of workmanship. They are made of materials of unknown origin. They are often a conglomeration of various working components and parts obtained from unspecified sources and assembled without observing any technical standards.

A feature characteristic of original Badestnost distributors.

Engraving with the symbol, manufacturer's name and country of origin:

3-SECTION HYDRAULIC DISTRIBUTOR P80 Production:

Badestnost Bulgaria, manufacturer's symbol: 03P80 A1A1A1 GKZ1

Application:

It has a wide range of applications in systems hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, tourers, cyclopes, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

Technical data:

Recommended oil flow in the system: 0 - 80 l/min. Example control: three double-acting cylinders.

Possibility of serial connection to an existing system (pressure sleeve required).

Control:

All three-position levers (1 - 0 - 2), on a spring, i.e. they return to the vertical on their own:

Neutral position 0 (lever set vertically), the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (lever set in a forward diagonal position), the actuator piston rod extends.

Working position 2 (lever set obliquely to the rear), the actuator piston rod retracts.

On the right side, a hydraulic diagram of the offered distributor:

Connection:

Supply from the pump (P1, P2): BSP 1/2'' internal thread

Return to the tank (T1, T2): BSP 3/ 4''

Sections (A1, A2, A3, B1, B2, B3): BSP 1/2'' female thread

Series connection (N): BSP 3 female thread /4'

Pressure range:

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on the sections : 300Bar

It is recommended to check and set the appropriate pressure before starting.

Possibility of self-adjustment, full turn change by 30Bar.

Oil types recommended by AGRICOLA:< p>

Thinner high-quality oil: LOTOS AGROL BOXOL 26

Thicker high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46

Recommended oil temperature range:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

The opening pressure of the overflow valve increases proportionally with the increase in flow:

180 bar at 20 l/min

190 bar at 40 l/min

200 bar at 60 l/min

210 bar at 80 l/min

Sets for precise pressure measurement can be found in the Manometers - measuring sets section
