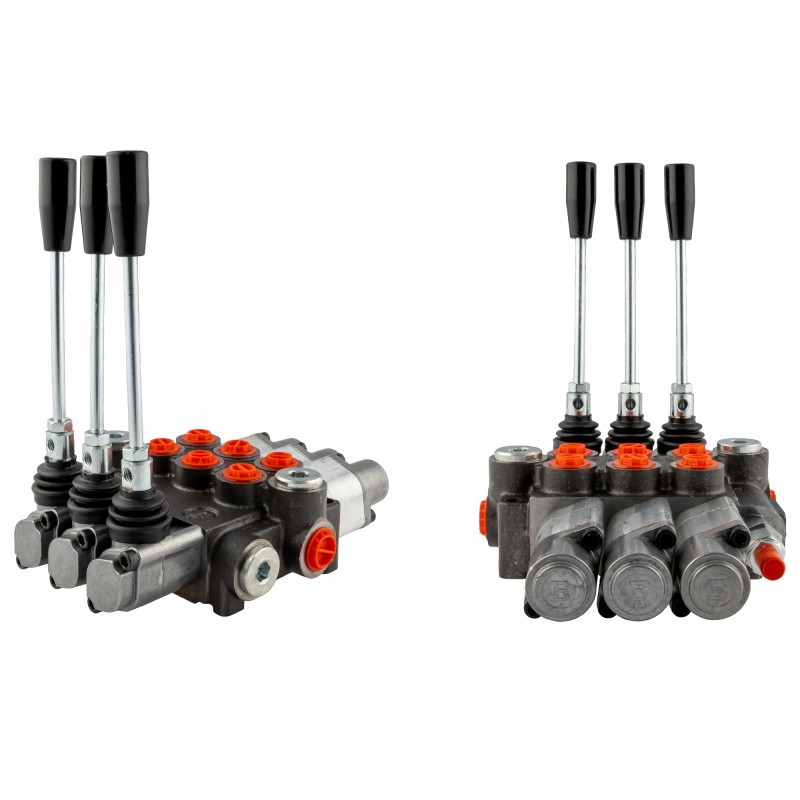

Distributor hydr 3s 40l 3xk16 badestnost

3-SECTION HYDRAULIC DISTRIBUTOR P40 WITH THREE FLOATING SECTIONS Production:

Original product of the Badestnost brand, manufacturer's symbol: 03P40 K16K16K16 GKZ1, symbol: 1.10.00.033.2

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders , construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

Floating section, also known as free flow, used, among others, for snow plows or TUR front loaders. It causes free movement of the piston rod in hydraulic cylinders. Protects against damage elements that have direct contact with the ground, e.g. plow blade.

Technical data:

Recommended oil flow in the system: 0 - 40 l/min. Example control: three double-acting actuators.

Possibility of serial connection to an existing system (pressure sleeve required).

Three four-position levers (1 - 0 - 2 - 3) , three positions (1 - 0 - 2) on a spring (the lever returns to the vertical by itself), position (3) floating on a latch (the lever stops in the floating position):

Position 0, neutral (lever set vertically), cylinder piston rod is standing - oil goes to the overflow.

Working position 1 (lever set in an oblique position forward), the cylinder piston rod extends.

Working position 2 (lever set in a diagonal position backwards), the cylinder piston rod retracts.

Floating position 3 with a latch (lever set in the maximum forward position), the cylinder piston rod works loosely, extends and retracts freely under the influence of the forces.

On the right, a hydraulic diagram of the distributor:

Connection:

Supply from the pump (P1, P2): BSP 1/2'' internal thread

Return to the tank (T1, T2): BSP 1/2' internal thread '

Sections (A1, A2, A3, B1, B2, B3): BSP 3/8 internal thread''

Series connection (N): BSP 1/2 internal thread '

Pressure range:

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on sections: 300Bar

The opening pressure of the overflow valve increases proportionally with the increase in flow:

180 bar at 10 l/min

190 bar at 20 l/min

200 bar at 30 l/min

210 bar at 40 l/min

Sets for precise pressure measurement can be found in the Manometers - measuring sets section

It is recommended to check and set the appropriate pressure before starting.

Possibility of self-adjustment, full turn change by 30Bar.

Oil types recommended by AGRICOLA:

Thinner, high-quality oil: LOTOS AGROL BOXOL 26

Thicker, high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46

Recommended oil temperature range:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C
