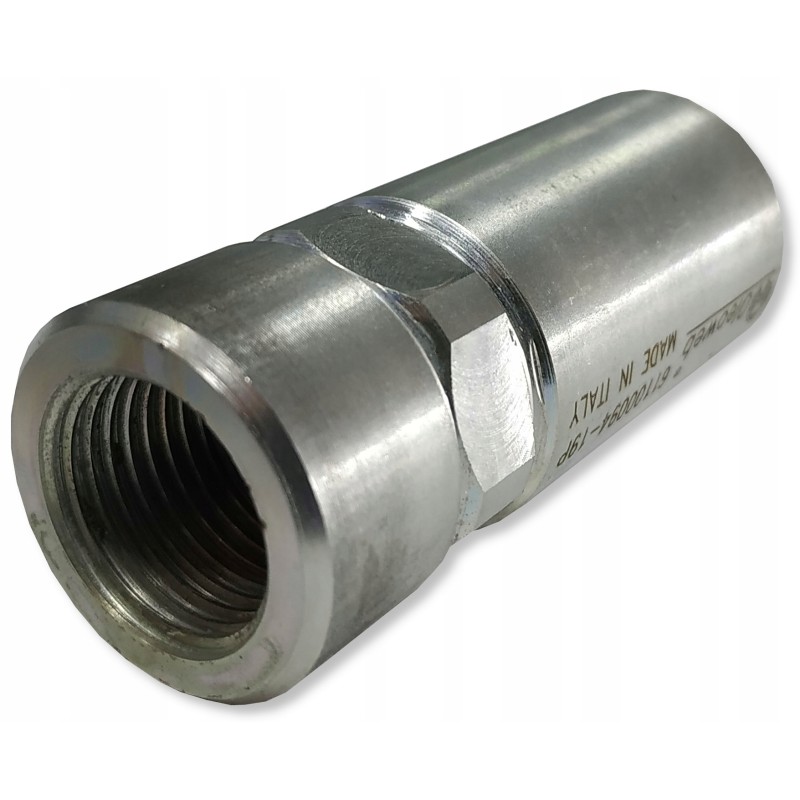

Safety valve for trailer vuba aa 1 2 set

SAFETY VALVE FOR TRAILER VUBA AA 1/2 SET [1965]

Used in hydraulic systems used in the broadly understood industry, agriculture, construction and forestry.

The valve is most often used with various types of hydraulic cylinders (which are exposed to high pressure forces), in in order to protect them in the event of a failure or breakage of the cable.

In such a situation, the valve protects the system against loss of oil contained in the cylinder and in trailers against sudden lowering of the unloading box.

The valve should be screwed directly to the body of the hydraulic cylinder, otherwise it will not work protected. Technical Specification: Maximum flow: 80L/min

Number of hydraulic holes: 2

Internal thread [BSP] on both sides: 1/2'

Cartridge material: polished steel

Body material: galvanized steel

Maximum allowable pressure: 350bar

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Mineral oil-based hydraulic oil
