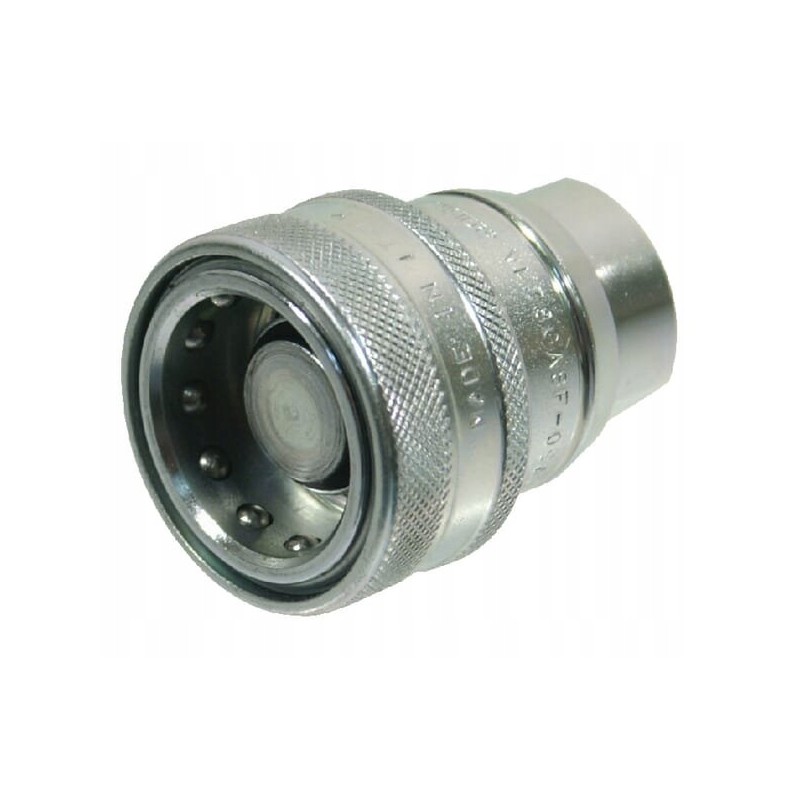

Flat quick connector for the braking system, vf socket

Flat quick connector for the VF braking system, socket 3/8', internal thread 1/2' BSP Parameters

Part Number: VF012GASF

Unit: Piece

Manufacturer: Faster

Size: 3/8 inch

Shape: Straight - 2 Sides Connector

Connector Type #1: Quick Connect

Connector Type #1 - Male/Female: Female

Connector #1 Diameter : 44 mm

Thread diameter of connector no. 1: 1/2 inch

Outer diameter: 1.73 inch

Material: Steel

Surface treatment: White passivated

Working pressure: 220 BAR

Working temperature max.: 125 °C

Operating temperature min.: -25 °C

Quick connector lock type: Balls around the circumference

Connection method: Sleeve offset

Disconnection method: Sleeve offset

Series: VF

Valve type: Flat

Weight: 379.7 g

Connector key size no. 1: 27 mm

Connector No. 1 thread type: BSP

Connector No. 2 type: Thread

Connector No. 2 male/female type: Female

Connector No. 2 thread diameter: 1/2 inch

Number of threads per inch of connector No. 2 thread : 14

Connector No. 2 thread type: BSPP

Ability to connect under pressure: No

ISO standard: 5676

BS standard: 5380

Total length [L1]: 2.32 inch

Specifications

- Connector with a special flat valve Benefits

- Minimum degree of leakage Application

- Hydraulic braking systems - Mineral oil based fluids Properties

- Joining without air inclusions - Cannot be connected under pressure

Technical information

- The connector should be screwed in until it stops Seal material

- Nitrile rubber [NBR]

- Teflon (PTFE)
