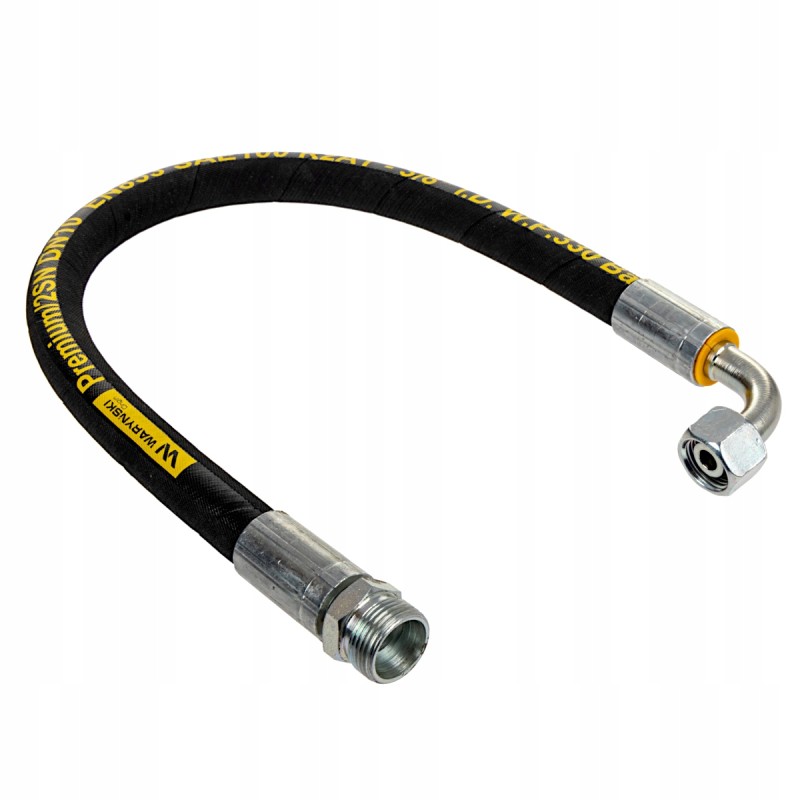

Hydraulic hose 48cm, Ursus C 360 distributor

Hydraulic hose 48cm of the Ursus C-360 external distributor kit MIZAR number: 64855

Hydraulic hose 48cm of the C-360 external distributor kit

High-quality hydraulic hose with crimped ends.

Each assembly comes with one tip connector (which eliminates mis-fitting insert and ferrule) and appropriate tubing.

Flexible tubing is a synthetic rubber pipe with a synthetic outer coating and high yield strength steel wire reinforcement.

Applications

Applications include: Medium pressure service of petroleum based hydraulic fluids, mineral oils, lubricating oils, water glycol, water-oil emulsion hydraulic fluids, hot oil, grease, crude and fuel oils, air and water

Cable specifications:

Straight connector thread: M22x1.5 DN10 (external)

Elbow thread: M18x1.5 90' DN10 (internal)

Inner diameter: 10mm

Outer diameter max: 19.7 mm

Working pressure: 33 Mpa / 330 bar Bursting pressure: 132 Mpa / 1320 bar Number of braids: 2

Operating temperature: -40°C to +100°C

Inner layer: Black rubber made of synthetic rubber, resistant to oil and water Outer layer: Black rubber made of synthetic rubber, resistant to abrasion, oil, weather conditions and ozone

Minimum bending radius: 130.0 mm

MIZAR number: 64855
