Tip dn20 oe44 5mm 90

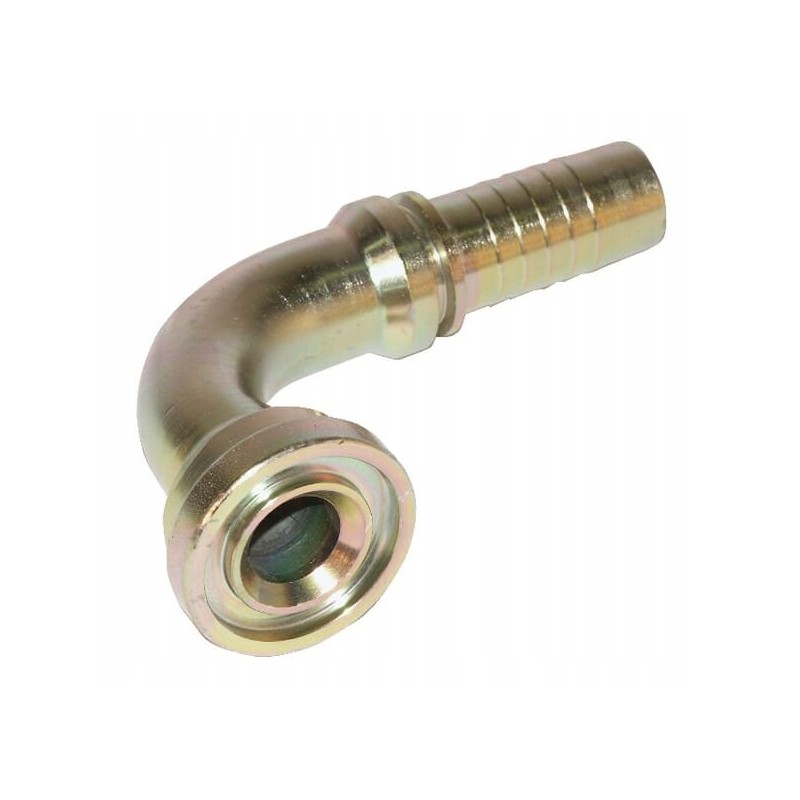

Tip DN20-Ø44.5 mm-90° Parameters

Part number: PFL201690

Unit: Piece

Manufacturer: Alfagomma

Shape: Elbow - 2 sides connector

Connector type no. 1: Conical

Connector type no. 1 - male/female: Female

Connector type no. 1 - code: SFL

Connector diameter No. 1: 1 inch

Connection Diameter: 44.5 mm

Connector No. 1 Length: 66.2 mm

Connector No. 2 Type: Hose Barb

Connector No. 2 Type - Male/Female: Male

Connection No. 2 Diameter: 3 /4 inch

No.2 Connector Length: 64.5mm

Flange OD: 44.5mm

Flange PSI Series: 3000

Angle: 90°

Material: Steel

OE Reference Number: H1243390-121600

Connection: xx

Surface treatment

- Galvanized

- White passivated
