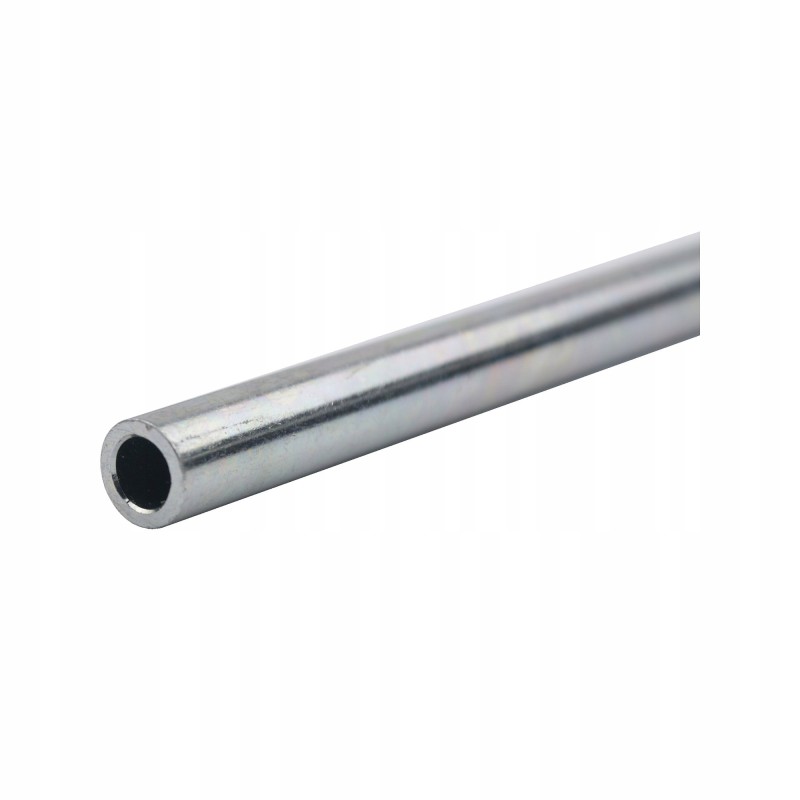

Hydraulic pipe l9 1m sr external 12mm hydrolider

HYDRAULIC PIPE FI12, LENGTH 1 METERProduction:

Original product of the Hydrolider brand, symbol: 1.60.52.003

Application:

It is widely used in hydraulic systems in agriculture and horticulture , forestry, construction and broadly understood industry.

Metal pipes are a solid carrier of the oil stream in the hydraulic system. Compared to hydraulic lines, the tubes are characterized by a longer service life, the tube surface is galvanized, resistant to corrosion and weather conditions.

Technical data:

1 piece equals 1 meter

Inner diameter of the pipe (through): 9mm Outer diameter of the pipe: 12mm Thickness of the pipe wall: 1.5mm

Material:

steel

For mounting the pipe in the system the so-called are necessary TEKALAN connectors, available at other auctions: (photo):

The TEKALAN system does not require additional sealing work during installation, e.g. welding or welding. Sealing occurs automatically, the ring seals the connection when the nut is tightened.
