Multiplier 1 3 8 g pump 40l wk hydrolider

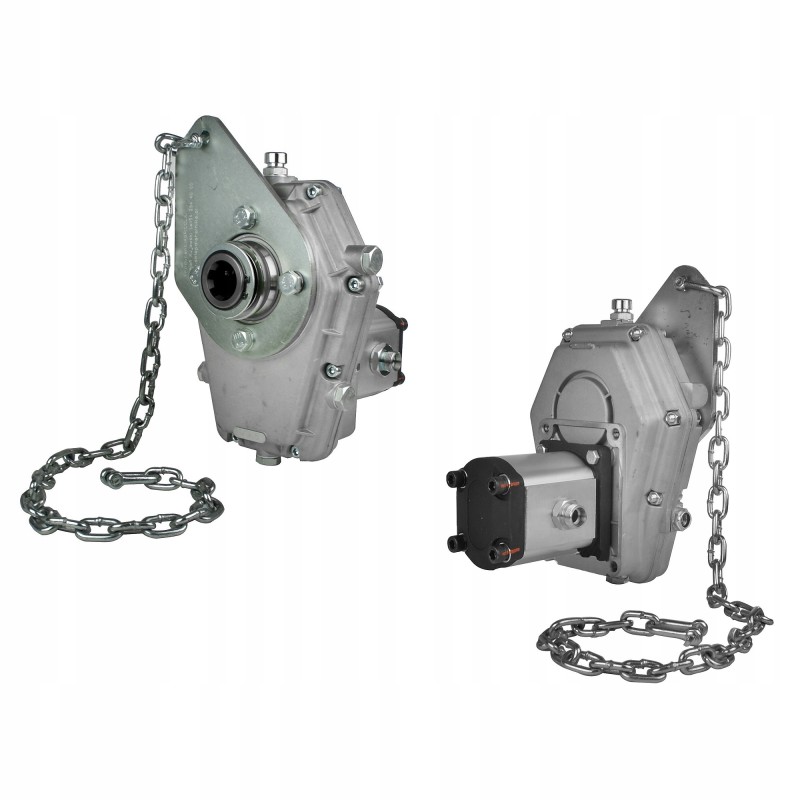

MULTIPLICATOR WITH HYDRAULIC PUMP AND ANTI-OVER-TURNING COLLAR Set composition:

Multiplifier 1:3.8

Flange with chain and shackle

Gear pump 20 cm3

Connecting coupling

Screws and connections

Production:

Original product of the Hydrolider brand, symbol: 1.45.01.041

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

A strong and efficient set, ideal for small and medium-sized forestry and construction machines and tractors, among others. in C-330, C-360, C-385, ZETOR, MF and others with PTO drive.

Used wherever the original hydraulic pump installed in the machine is not strong and efficient enough or in when an additional, new hydraulic system is needed to control the newly installed equipment.

Technical data of the set:

The gearbox is mounted on the PTO shaft using a latch, this solution allows it can be installed or dismantled quite quickly if it turns out that we need a PTO shaft for another machine.

Efficiency of the set:

Efficiency depends on the speed of the PTO shaft to which the set is connected . The higher the PTO revolutions, the more efficient the pump.

Efficiency of the set in l/min relative to the PTO shaft revolutions:

220 rpm per PTO efficiency 16L/min

320 rpm on PTO capacity 24L/min

430 rpm on PTO capacity 32L/min

540 rpm on PTO capacity 40L/min

Efficiency of the set in l/min relative to engine revolutions in tractors C-330, C-360, C-385, ZETOR, MF 255 and derivatives:

800 rpm on the engine efficiency 16L/min

1200 rpm on the engine, efficiency 24L/min

1600 rpm on the engine, efficiency 32L/min

2000 rpm on the engine, efficiency 40L/min

Technical data of the gearbox:

Transmission ratio: 1:3.8 Max power: 20 kW

Fits a typical 1.3/8' PTO shaft

Rotations on the shaft PTO: max 540 rpm

Has a sight glass for checking the gear oil level

Possibility of working with pumps of the second and third group

Material: body - aluminum, wheels gear - steel

Requires filling with gear oil.

When used for the first time, to increase the durability of the gear, it is recommended to change the oil after the first 50 operating hours.

Technical data of the pump :

Geometric volume: 20 cm3/rev

Rotation direction: right

Maximum rotation speed: 2500 rpm

Maximum pressure working: 25 MPa

Maximum pressure in cooperation with the gearbox: up to 25 MPa

Technical data of the flange:

The flange stabilizes the multiplier during operation, after engaging the PTO shaft it blocks rotation of the multiplier. Thus, it protects the entire set against damage.

Material: steel

Coating: galvanized

Sheet thickness: 8mm

Chain length: 80cm

Important!!!

Agricola's sets have been designed in such a way that they can be easily assembled by yourself. Due to the safety of the goods during transport and restrictions resulting from the regulations of courier companies, the set is sent untwisted.
