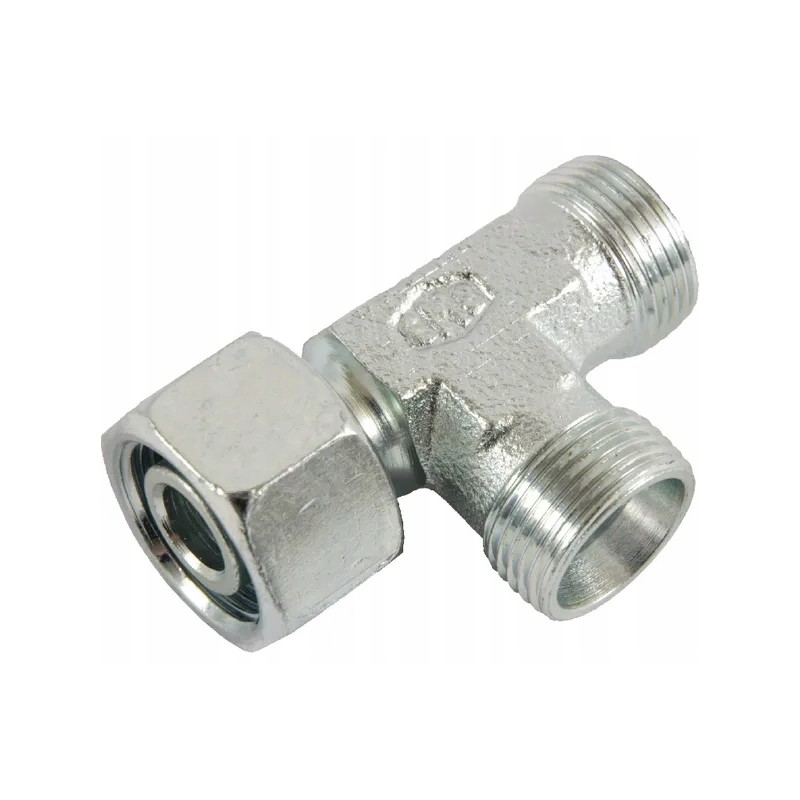

Elsd10l tee connector with nut m16x1 5 10l

ELSD10L Tee connector with unsymmetrical nut M16x1.5 10LEAN

8719607024921

Advantages

2S cutting ring

Product details

2S cutting ring - Optimal connection to the cutting ring and perfect performance

Increased corrosion resistance

Available with Viton seal on request

Shape

Tee (T) - 3 connections

Connector type no. 1

Thread

Connector type no. 1 - male/female

Male

Connector no. 1 thread diameter

M16

Connector no. 1 thread pitch

1.50 mm

Connector thread type

Metric

S2 Size wrench for connector no. 1

19.0 mm

Type of connector no. 2

Thread

Type of connector no. 2 - male/female

Male

Thread diameter of connector no. 2

M16

Thread pitch of connector no. 2

1.50 mm

Thread type of connector no. 2

Metric

S2 Wrench Size for Connector #2

19.0 mm

Connector Type #3

Swivel Nut

Connector Type #3 - Male/Female

Female

Connector #3 Length

40

Connector #3 Thread Diameter

M16

Connector Thread Pitch No. 3

1.50 mm

Thread type of connector No. 3

Metric

L2 Dimension from the center of the connector to the end of the next connector

30 mm

L1 Dimension from the center of the connector No. 2 to the end of the next connector

29 mm

L Dimension from the center of the connector No. 3 to end of the next joint

15 mm

Pipe diameter

10 mm

DIN standard

2353

3865

2401

Inner diameter

8.33 mm

6 mm

S1 Body height

17 mm

Surface treatment

Zinc

Nickel-plated

Working pressure max.

500 BAR

Internal diameter sealing ring

8.5 mm

Sealing washer thickness

1.5 mm

Seal material

Nitrile rubber [NBR]

Series

L
