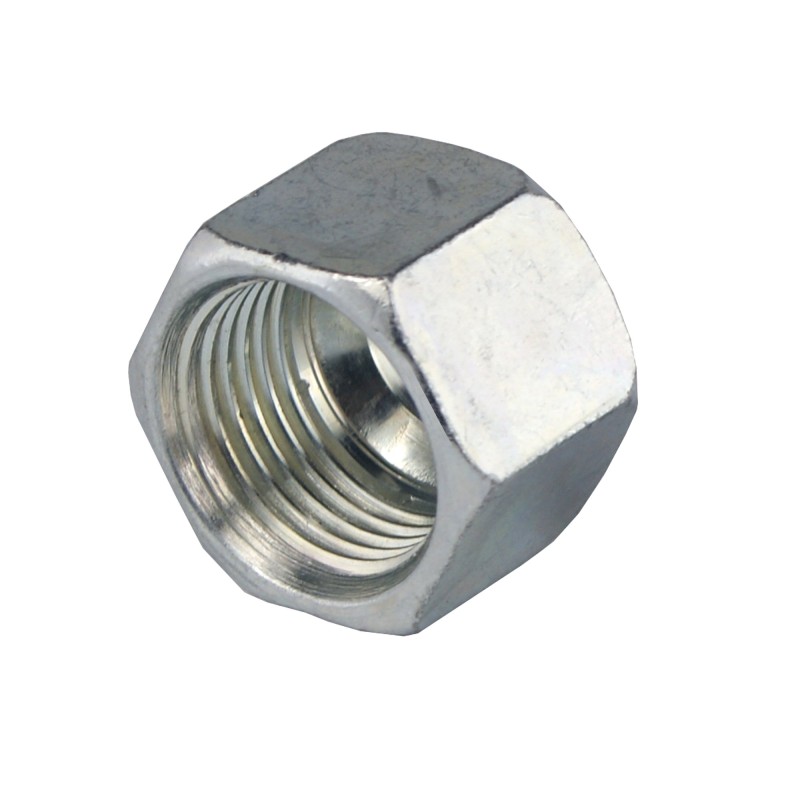

Tekalan m16 clamping nut for fi10 tube

TEKALAN CLAMP NUT M16x1.5 FOR HYDRAULIC TUBE FI 10mm Production:

Original product of the Hydrolider brand, symbol: 1.60.62.206

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

TEKALAN type clamping nut mounted on a hydraulic pipe. Metal pipes are a solid carrier of the oil flow in the hydraulic system. Compared to hydraulic hoses, tubes are characterized by longer service life, resistance to weather conditions and resistance to very high pressures.

Technical data:

Thread: metric 16x1.5

Fits the ring intended for a 10mm diameter pipe

Maximum pressure: 240 bar

Standard: PN-139 16-8

Material:

steel

TEKALAN nuts are necessary for mounting metal pipes in the hydraulic system. For proper installation of the hydraulic pipe, in addition to the nut, you also need a Tekalan ring, which we offer at other auctions (photo)

The TEKALAN system does not require additional sealing work during installation, e.g. welding. Sealing occurs automatically, the ring seals the connection when the nut is tightened.

Example application:

installation of the so-called VBPDE valve. LOCK on the hydraulic cylinder using TEKALAN tubes and connectors:
