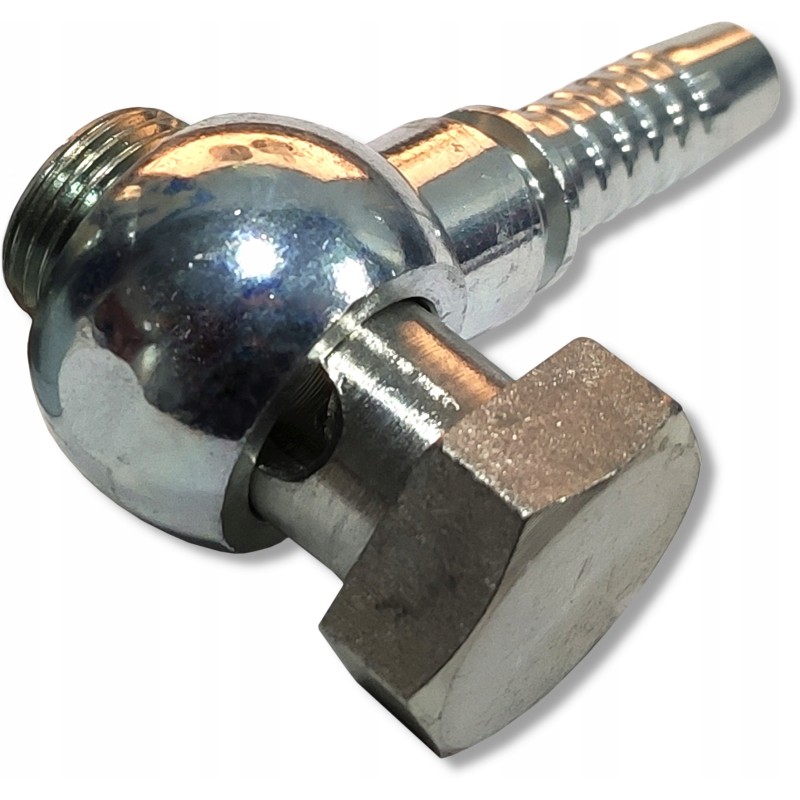

Eyelet ferrule 3 8 dn10 screw 3 8 banjo

Hydraulic eyelet ferrule - G3/8' with a G3/8' screw. SKRAW-MET CODE: [2546]Eye end fittings, also called 'banjo' end fittings - used for ferruling flexible hydraulic hoses to enable connection of wires with other elements.

Usually used when there is not much space in the hydraulic system for a knee switch, an eyelet connector is used, which is tightened with a screw.

___The basic element of the production of hoses - is done by clamping the hose with a clamping sleeve using a hydraulic press or crimping machine.

At each stage of production, precision and quality supported by detailed measurements.

The most modern CAD/CAM and ERP/MRP software solutions enabling the production of details for the most demanding applications .

Cutter symbol: 10 RNR 3/8'/17 + ŚRTechnical specification:Cutter dimensions: DN10 - 3/8'

DN dimension for the pipe: 10 mm

Screw thread: G3/8'

Material: Free-cutting carbon steel with zinc coating - Corrosion resistant
