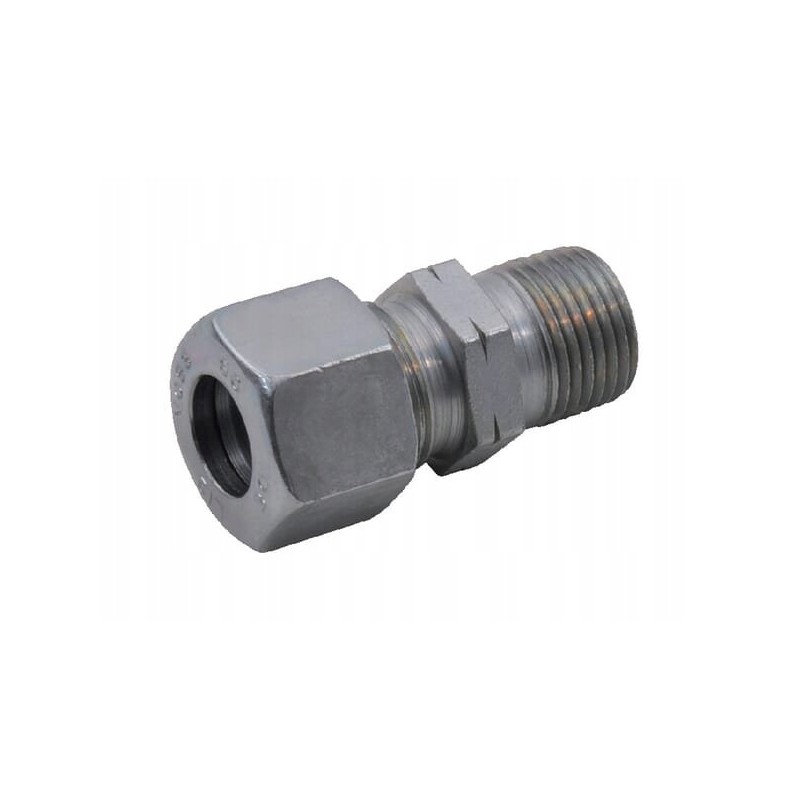

Straight connection with nuts m16x1 5 8s 1 4 npt

Straight connection with nut M16x1.5 8S 1/4 NPT Parameters

Part number: GEV8S14NPT

Unit: Piece

Manufacturer: Voss

Shape: Straight - 2 sides of connection

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connection diameter: 8 mm

Connector No. 1 thread diameter: M16

Connector thread length: 15.1 mm

Connector No. 1 thread pitch: 1.50 mm

Connector Thread Type: Metric

Connector No. 1 Wrench Size: 17.0 mm

Connector No. 2 Type: Thread

Connector No. 2 Type - Male/ female: Male

Connection No. 2 thread diameter: 1/4 inch

Number of threads per inch of connector No. 2 thread: 18

Connection No. 2 thread type: NPT

Connection No. 2 wrench size: 19.0 mm

Pipe diameter: 8 mm

ANSI standard: B1.20.1-1983.

ASME standard: B1.20.1-1983.

DIN standard: 2353

Max working pressure: 630 BAR

Series: 8S

Advantages

- 2S cutting ring

Product details

- 2S cutting ring - Optimal connection to the cutting ring and perfect function

- High corrosion resistance - Hydraulic hoses

- Hydraulic pipes

Dimension from the axis of the connector to the end of the next connector

18 mm

Dimension from the axis of connector no. 2 to the end of the next connector

33 mm

Surface treatment

- Zinc

- Nickel-plated
